ESP32-2424S012 ~

Features~

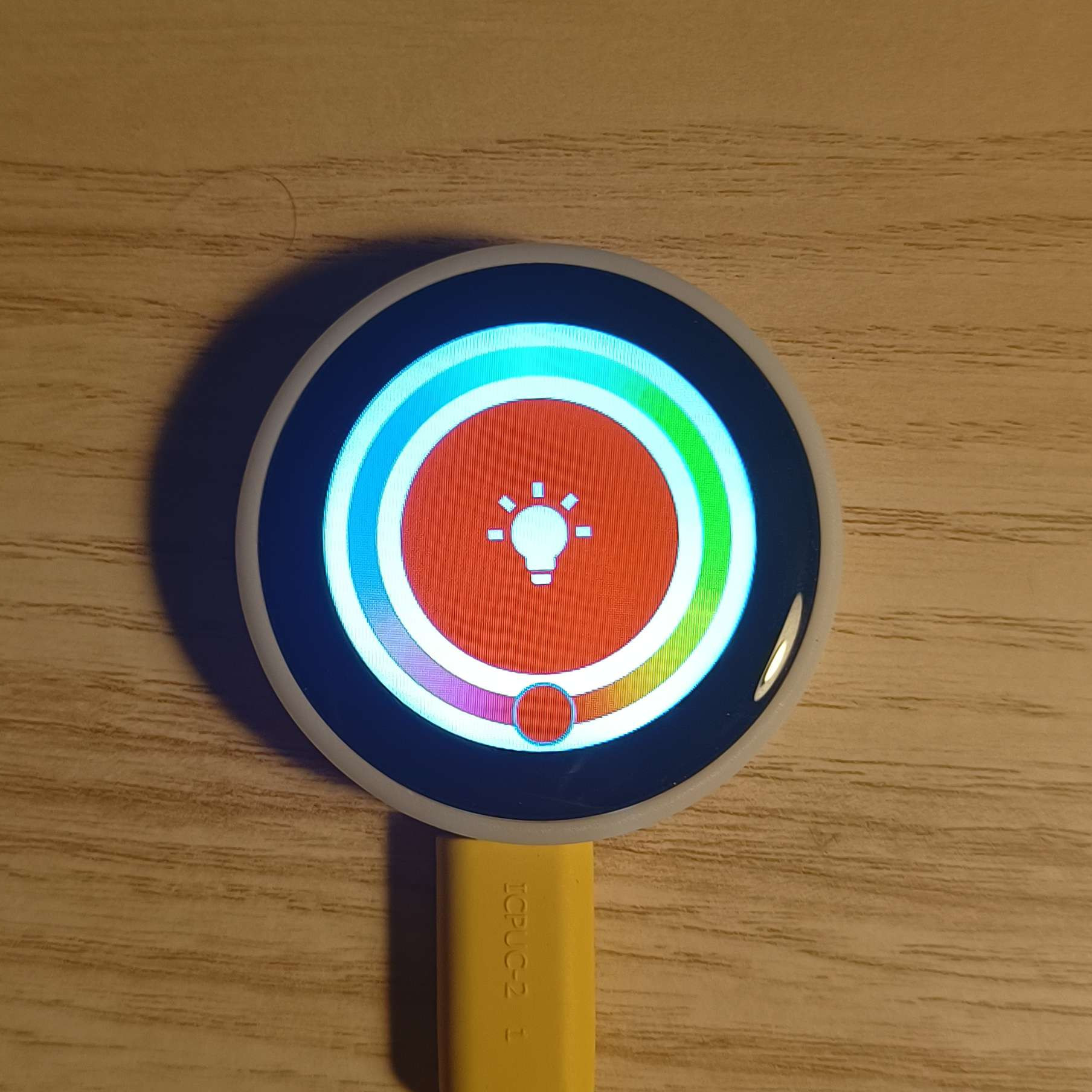

The ESP32-2424S012 is a device that features an ESP32-C3 (without any PSRAM), a 1.28" circular IPS display and a CST816S capacitive countroller. It is notable for having a circular, rather than rectangular, display.

It is available with a case. Power is supplied via a USB-C port, but it does not have necessary the CC resistors to use USB-C to USB-C cables - it is necessary to use a USB-A to USB-C cable.

Pros Cons
Circular display Circular display
IPS panel (good viewing angles) Small
Capacitive touchscreen No PSRAM
Available with case No CC resistors

Flashing~

This device uses the native USB Serial on the ESP32-C3. To put the module into flashing mode, hold the boot button (right-hand button on the back, when viewed with the display facedown and the USB port facing towards you) while clicking the reset button (other bottom facing button). After this, it can be flashed as usual.

After flashing, click the reset button to boot OpenHASP. After setup, the display will be inverted - to fix this, navigate to Configuration > Display Settings and enable "Invert Display".


Last update: 2024-05-26
