LILYGO® T-Panel S3 Lite ~

Warning

This is not the full T-Panel S3 (lilygo-t-panel). The Lite has no CST3240 touch, no XL9535 expander, no ESP32-H2, and no 7–24 V barrel jack. Do not flash the lilygo-t-panel firmware.

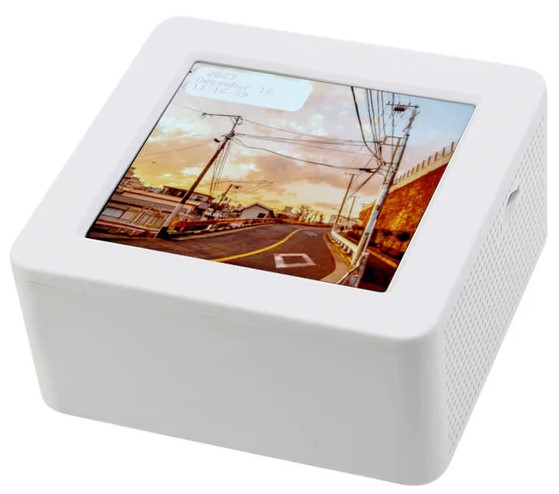

4" 480×480 IPS panel (ST7701S, SPI init + RGB) on an ESP32-S3. Display-only: use MQTT/pages.jsonl for the UI and the three hardware buttons for input.

Pros Cons
16 MB flash, 8 MB Quad PSRAM No touchscreen
Square 480×480 IPS 5 V USB-C only (no barrel jack)
Three hardware buttons Rounded bezel clips the LCD corners

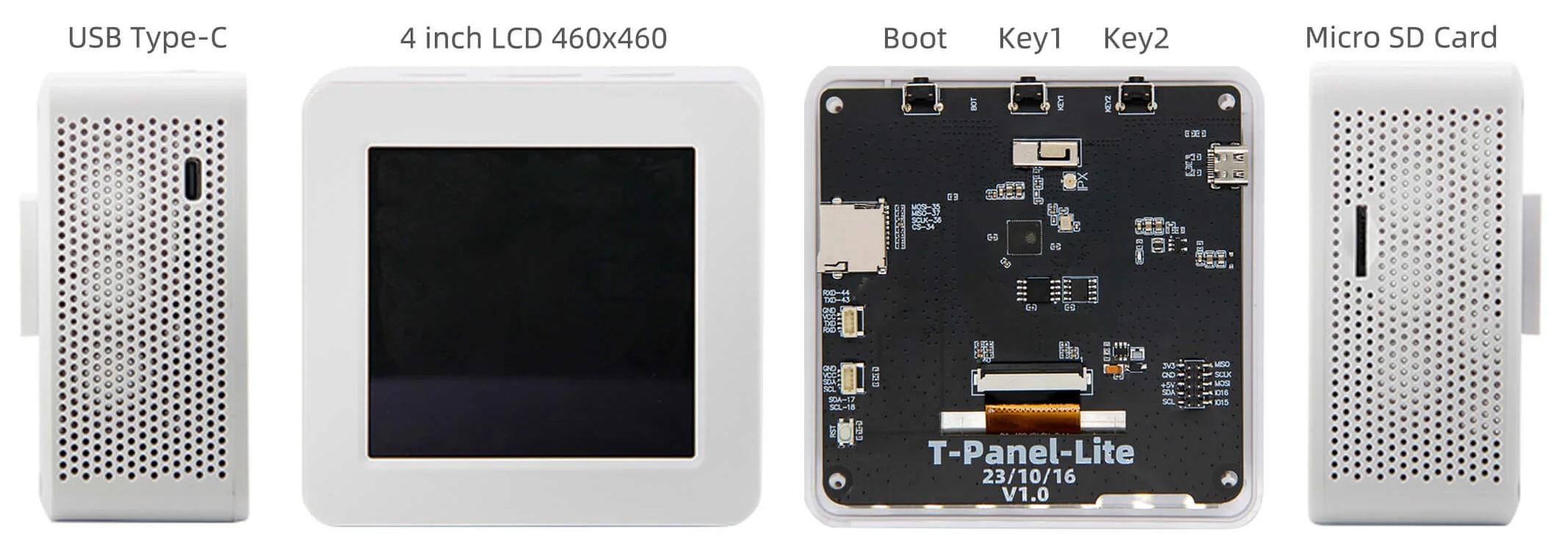

LILYGO   T-Panel-Lite

Features~

  • ESP32-S3, 16 MB flash, 8 MB Quad SPI PSRAM (qio_qspi — not Octal / N16R8)
  • 4.0" 480×480 ST7701S (YDP395BT001), 9-bit SPI init on ESP32 GPIOs (no XL9535)
  • No CST3240 touch
  • Backlight GPIO 33 (LilyGO source). The wiki listing GPIO 14 is wrong (that pin is SPI CS)
  • MicroSD (SPI)
  • KEY1 GPIO 48, KEY2 GPIO 47, BOOT GPIO 0 (openHASP defaults: BUTTON_TYPE, INTERNAL_PULLUP)
  • Power: 5 V USB-C only

Firmware~

Environment: lilygo-t-panel-s3-lite / lilygo-t-panel-s3-lite_16MB.

ARDUINO_USB_CDC_ON_BOOT is 0. If it is 1, the plate waits for a USB host and will not boot from a USB power brick. ARDUINO_USB_MODE=1 stays on so USB JTAG flashing still works.

The chip enumerates as Espressif USB JTAG (303A:1001). Fast RTS reset often drops the port. Use:

esptool.py --chip esp32s3 --port /dev/cu.usbmodem1101 --baud 115200 \
  --before usb_reset --after hard_reset write_flash --flash_mode keep --flash_size keep \
  0x0 lilygo-t-panel-s3-lite_full_16MB.bin

App-only update (keeps NVS / WiFi / MQTT): flash firmware.bin at 0x10000 with the same --before usb_reset.

Binaries: GitHub Actions lilygo-ttgo artifact, or compile with PlatformIO.

Home Assistant~

No touch: bind properties only in openhasp: objects. Do not use event: on page widgets for taps.

GPIO buttons appear as MQTT events, e.g. hasp/<node>/state/input47 ({"event":"up"} on a short click). Drive page changes from automations:

triggers:
  - trigger: mqtt
    options:
      topic: hasp/tpanel/state/input47   # KEY2
conditions:
  - condition: template
    value_template: "{{ trigger.payload_json.event == 'up' }}"
actions:
  - action: openhasp.next_page
    target:
      entity_id: openhasp.tpanel

KEY1 is input48 / openhasp.prev_page. Leave BOOT (GPIO 0) for download mode.

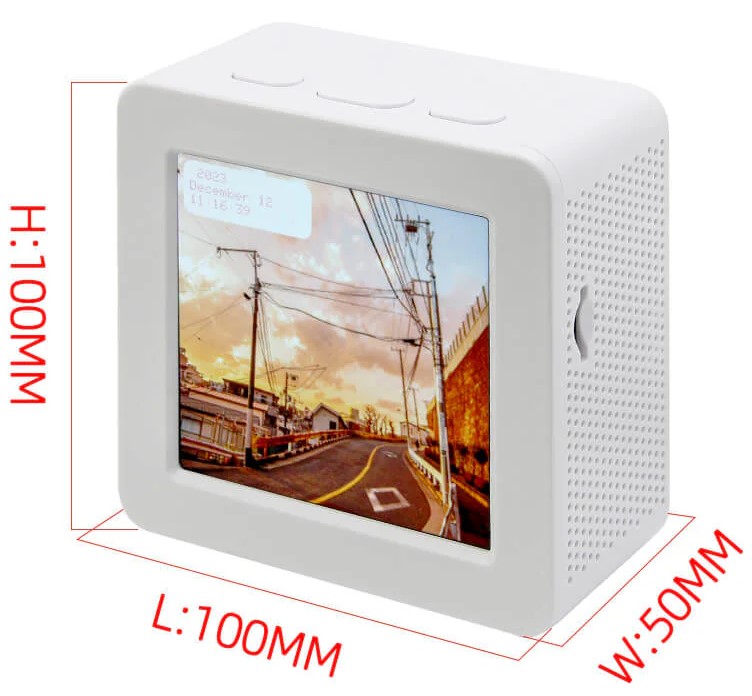

Keep page content ~24 px off the rounded corners; the panel itself is a square 480×480.

Pins~

From LilyGO t_panel_config.h:

Signal GPIO
SPI CS / SCLK / MOSI 14 / 36 / 35
DE / HSYNC / VSYNC / PCLK 38 / 39 / 40 / 41
B0–B4 1–5
G0–G5 6–11
R0–R4 12, 13, 42, 46, 45
Backlight 33
SD CS / SCLK / MOSI / MISO 34 / 36 / 35 / 37
KEY1 / KEY2 / BOOT 48 / 47 / 0

RGB: 6 MHz DE mode. Arduino_GFX 1.4.7 polarity 1 (idle-high).
