CrowPanel - HMI RGB ~

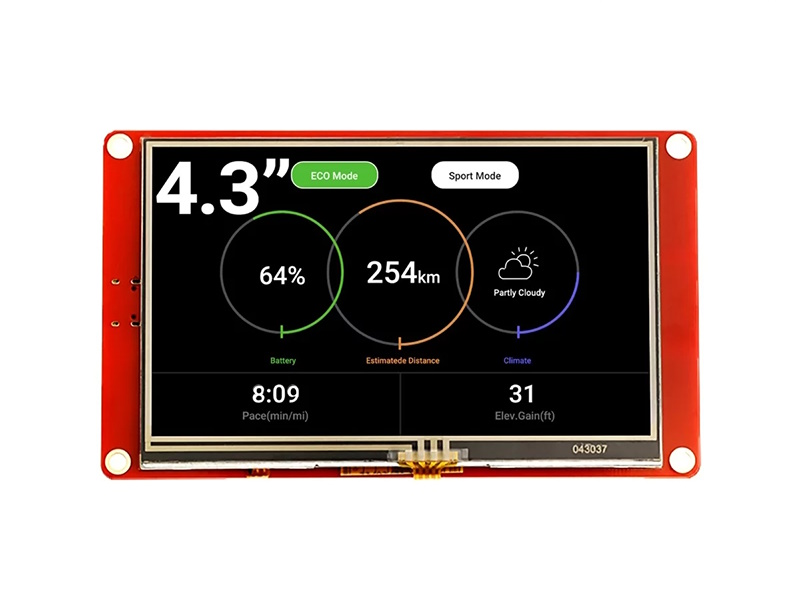

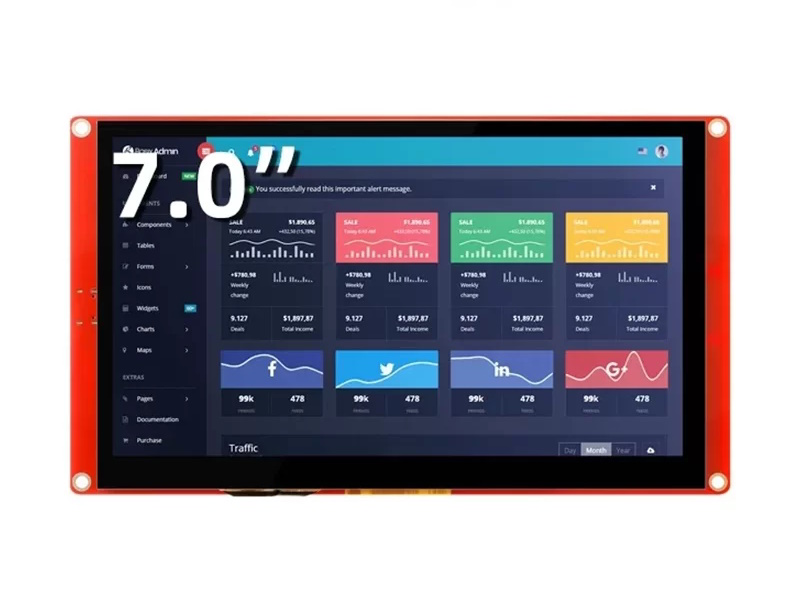

The CrowPanel HMI RGB range comes in three different size: 4.3", 5.0" and 7.0". All three models have a touchscreen and integrated ESP32-S3 module with built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0.

Models~

Model	4.3"RGB	5"RGB/th>	7"RGB
SKU	DIS06043H	DIS07050H	DIS08070H
Resolution	480x272	800x480	800x480
MCU	ESP32-S3-Wroom	ESP32-S3-Wroom	ESP32-S3-Wroom
Flash	4 MB	4 MB	4 MB
Psram	2 MB	8 MB	8 MB
Touchscreen	Resistive	Resistive	Resistive
SD Card	yes	yes	yes
Screen dimming	yes	yes	yes
	Buy Aliexpress NL Elecrow.com	Buy AliExpress Elecrow.com	Buy AliExpress Elecrow.com

The audio port and SD card are not supported by openHASP 0.7.0-rc11.

ESP32-S3 Modules have PSram and are more suitable for loading fonts, and graphics.

Video~

Elecrow ESP32 Touch Screen TFT Display 5" VS 7"~

Cases~

You can order the display either with or without matching acrylic case.

Flashing~

Compile your own via platform.io and platformio_override.ini environment templates.

Also available via web installer at https://nightly.openhasp.com/

or the latest found under Github Actions, click on the latest action, and look under the Assets sections for zip files containing builds binary files.

Recommended method~

Use the Nightly build website to initially flash the device.
Then update with the OTA file found under Actions, Assets on github. Or compile your own if comfortable doing that.

Last update: 2024-06-07
