ESP32 TFT Touch with Camera~

Features~

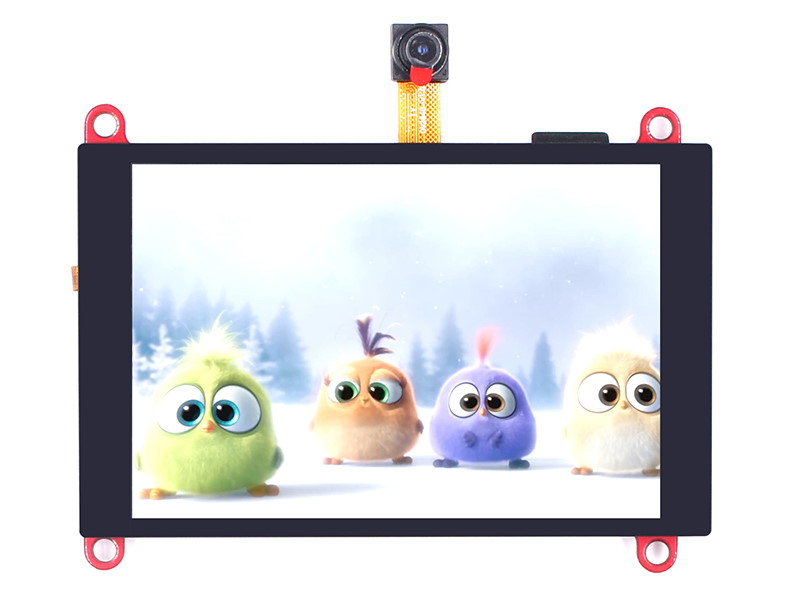

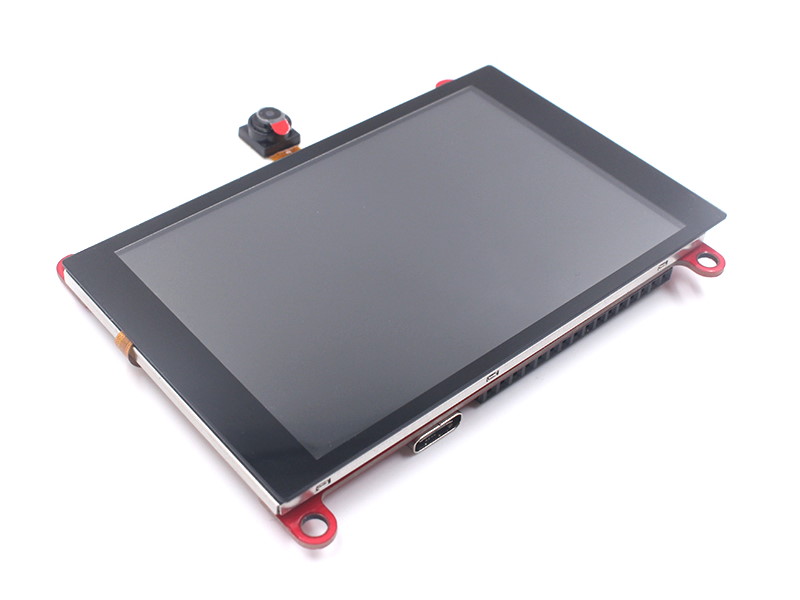

The Makerfabs ESP32 TFT Touch development board incorporates a 3.2” or 3.5” touch display, with a built-in 2M pixel OV2640 camera, which makes it a very suitable platform for any ESP32 project. There is a version with capacitive and resistive touch.

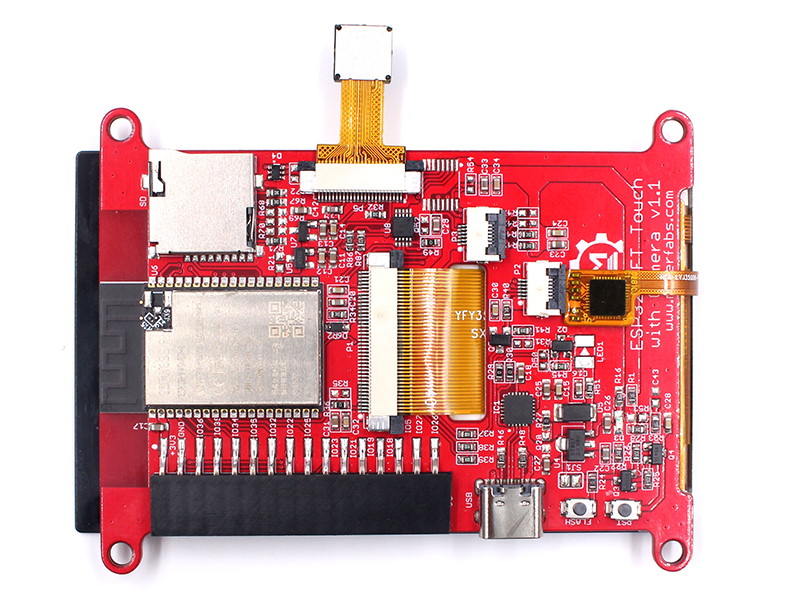

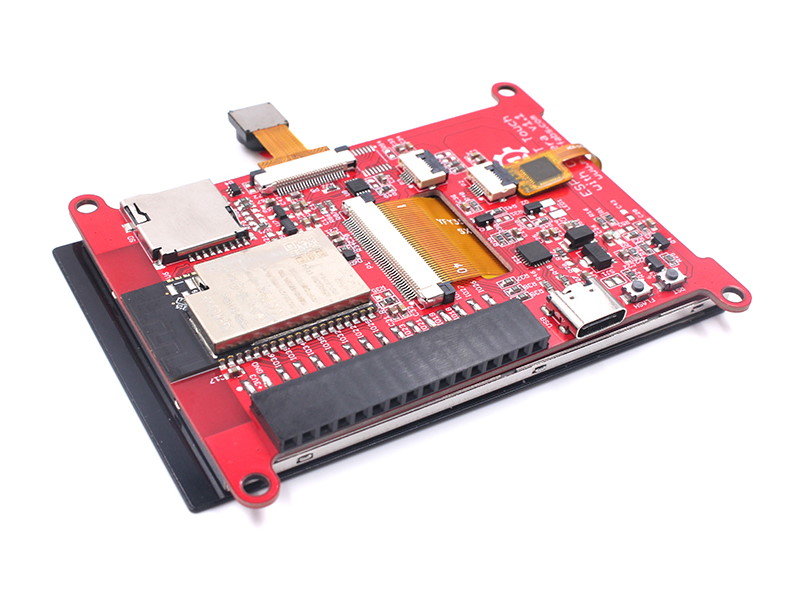

At the back sits an ESP32-WROVER module with 16MB of flash and 8MB of PSram. There is also an SD-card slot, USB-C connector and expansion port with 14 GPIOs.

Models~

Model 3.2" Resistive 3.5" Resistive 3.5" Capacitive
SKU ESPTFT32CA ESPTFT35RE ESPTFT35CA
Flash 16 MB 16 MB 16 MB
PSram 8 MB 8 MB 8 MB
Resolution 3.2" 320x240 3.5" 480x320 3.5" 480x320
Touch Screen Resistive Resistive Capacitive
OV2640 Camera 2M pixel 2M pixel 2M pixel
SD Card ✅ yes ✅ yes ✅ yes
Screen dimming ❌ no ❌ no ❌ no
Buy Buy Buy

Also available on Tindie

Tip

An optional environmental expansion board can be added to provide a temperature, humidity and air quality sensor. The camera can not be used at the same time as the expansion port.

The camera and SD card are not supported by openHASP 0.7.0-rc11.

Backlight Control~

Unfortunately, there is no support for backlight control. The display is always-on.

Video~

Documentation~

More information can be found in the Makerfabs Wiki and there are plenty of example projects available on the Github repository.

Makerfabs Wiki   Github Repo   Schematics

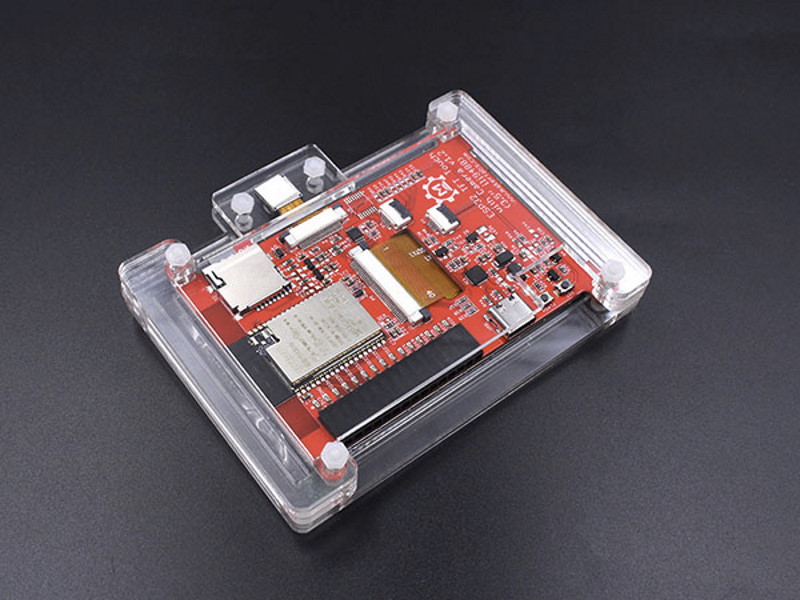

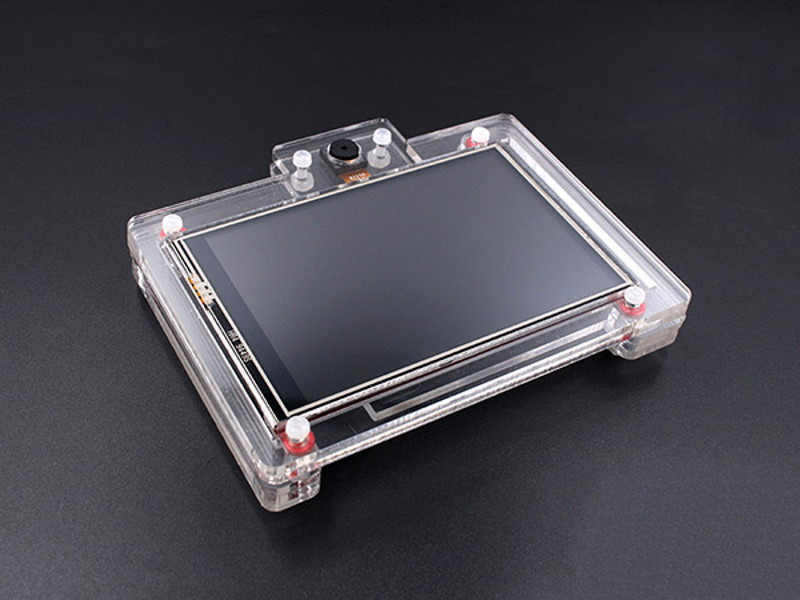

Acrylic Case~

All 3 models have the option to add a protective acrylic case for only $2.90 extra:


Last update: 2024-05-26
