ESP32-S3 SPI TFT with Touch~
Features~

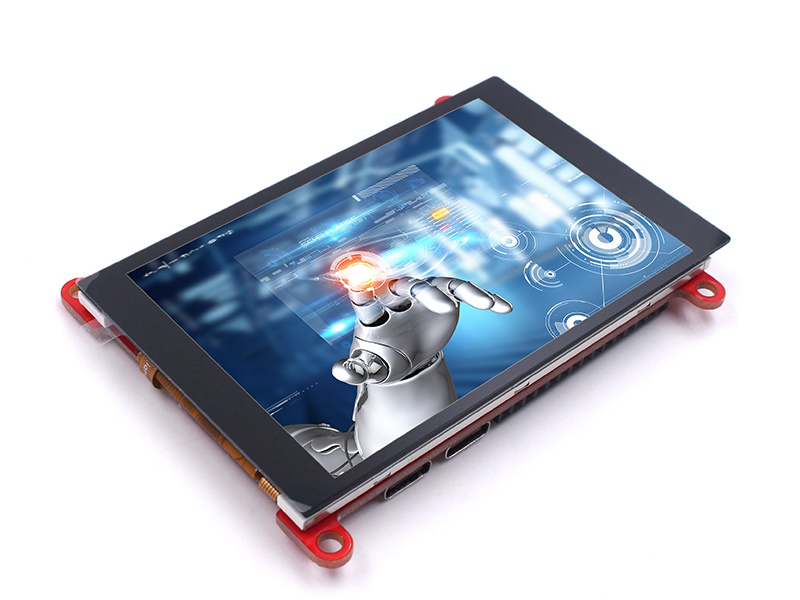

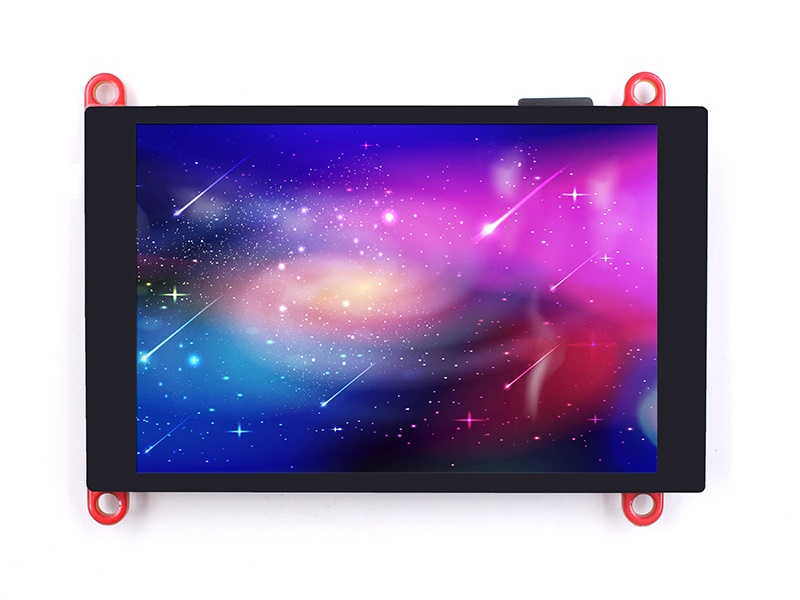

The ESP32-S3 SPI TFT with Touch development board incorporates a 3.5” capacitive touch display which makes it a very suitable platform for any openHASP project.

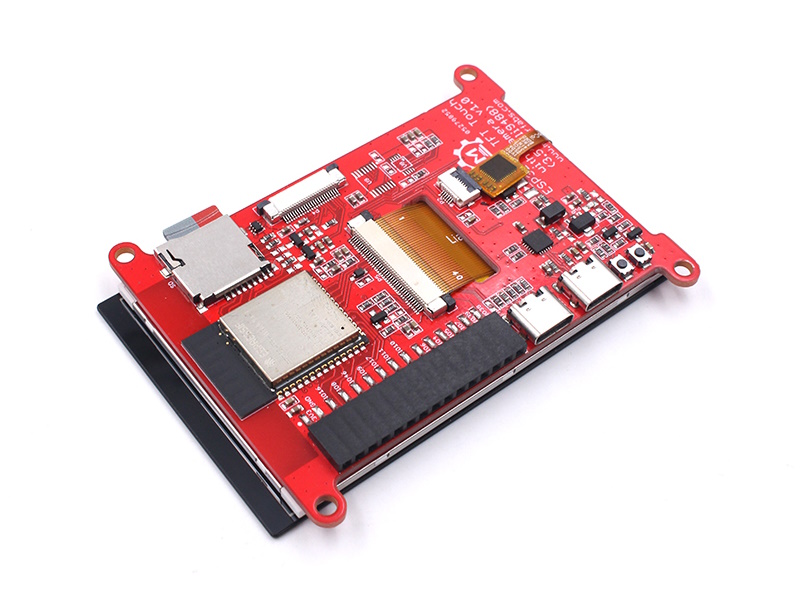

At the back sits an ESP32-S3-WROOM module with 16MB of flash and 2MB of PSram. There is also an SD-card slot, USB-C connectors and expansion port with 14 GPIOs.
Models~
| Model | 3.5" SPI | ||
|---|---|---|---|
| SKU | ESP32S3SPI35 | ||
| Flash | 16 MB | ||
| PSram | 2 MB | ||
| Resolution | 3.5" 480x320 | ||
| Touch Screen | Capacitive | ||
| SD Card |  yes |
||
| Screen dimming | yes |
||
| Buy |
Also available on Tindie
Tip
An optional environmental expansion board can be added to provide a temperature, humidity and air quality sensor. The camera can not be used at the same time as the expansion port.
The camera and SD card are not supported by openHASP 0.7.0-rc11.
Backlight Control~
The backlight can be controlled by PWM on GPIO48.
Video~
Documentation~
More information can be found in the Makerfabs Wiki and there are plenty of example projects available on the Github repository.
Makerfabs Wiki Github Repo Schematics
Enclosure~
We don't have any 3D printable enclosure yet to share here. If you have a case for this board, please let us know so we can share it here.
