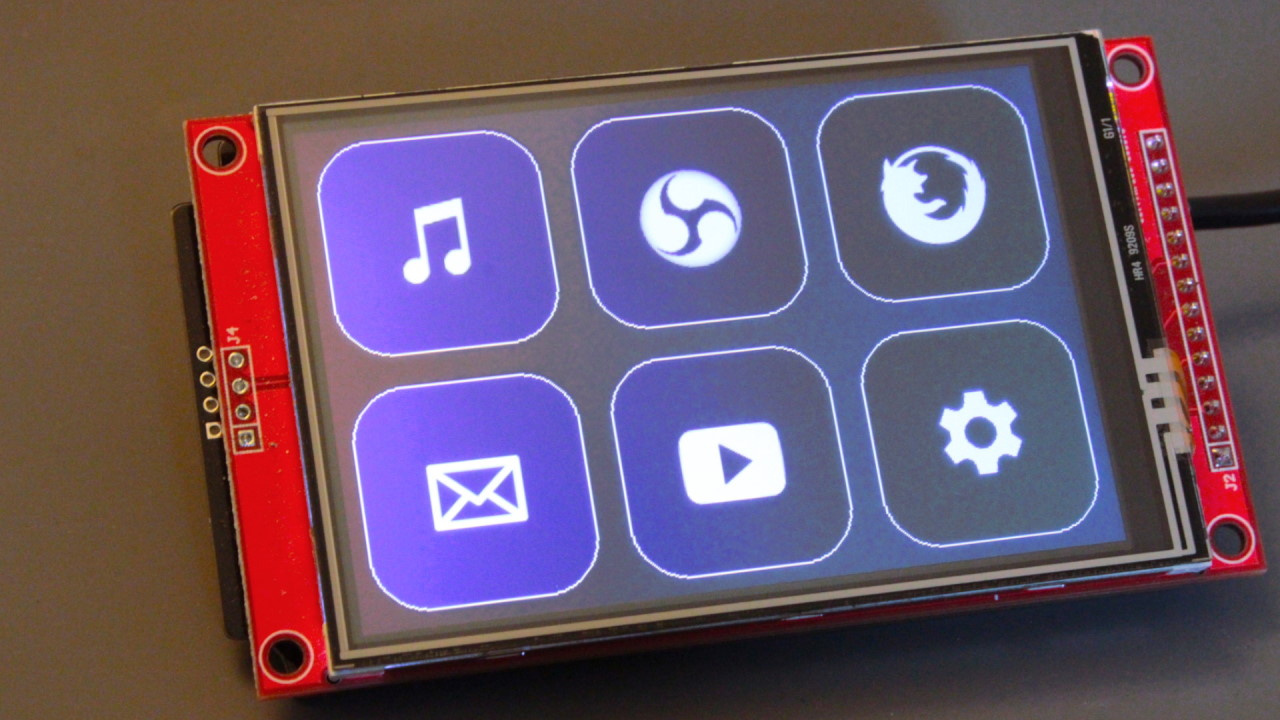

  • ESP32 DevKitC (38pin)
  • ILI9488 TFT SPI 4-WIRE
  • XPT2046 resistive touch controller

This board is created for the FreeTouchDeck project and the PCB-combiner board is open source. Due to the extensive documentation it was easy to port openHASP to the FreeTouchDeck.

Pros Cons
480x320 Display 4 MB flash
Price No PSram
Build Instructions Resistive touch

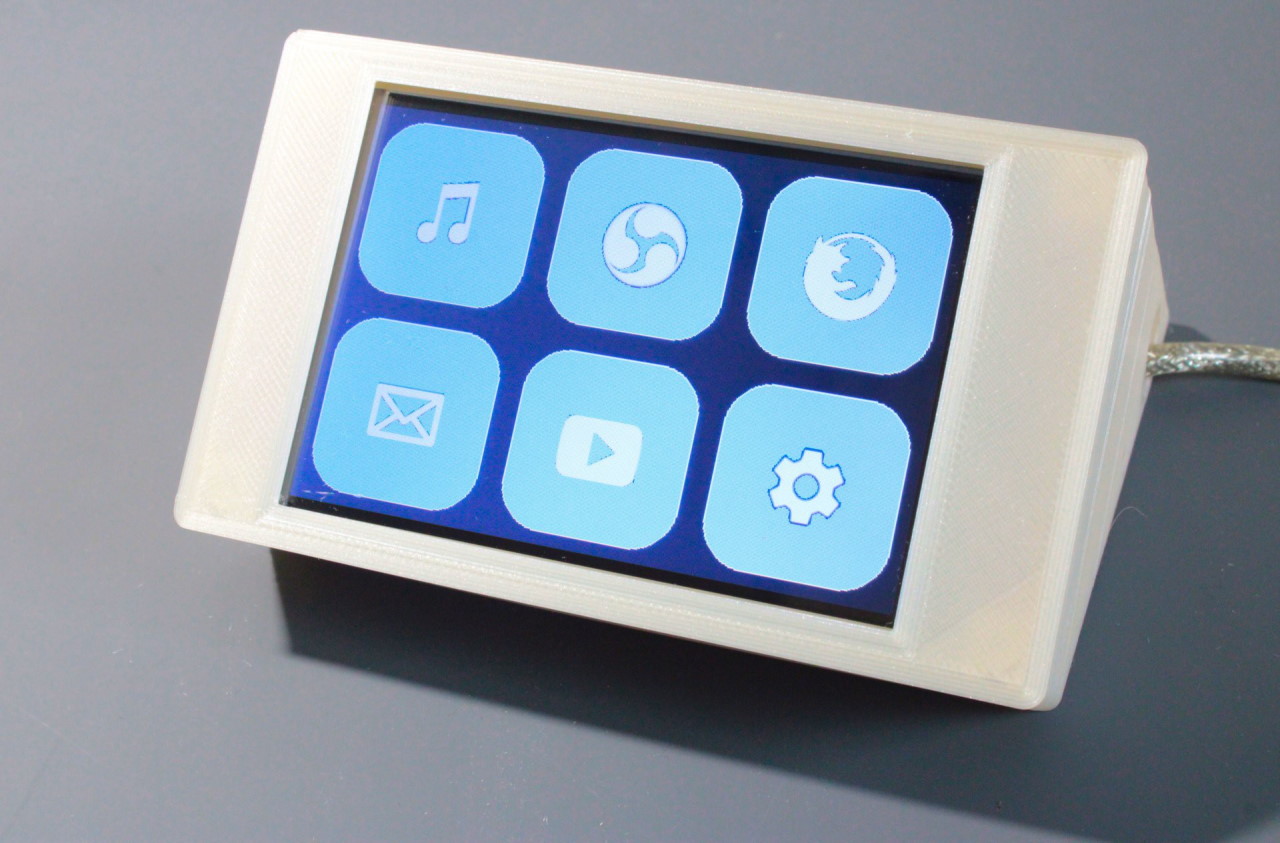

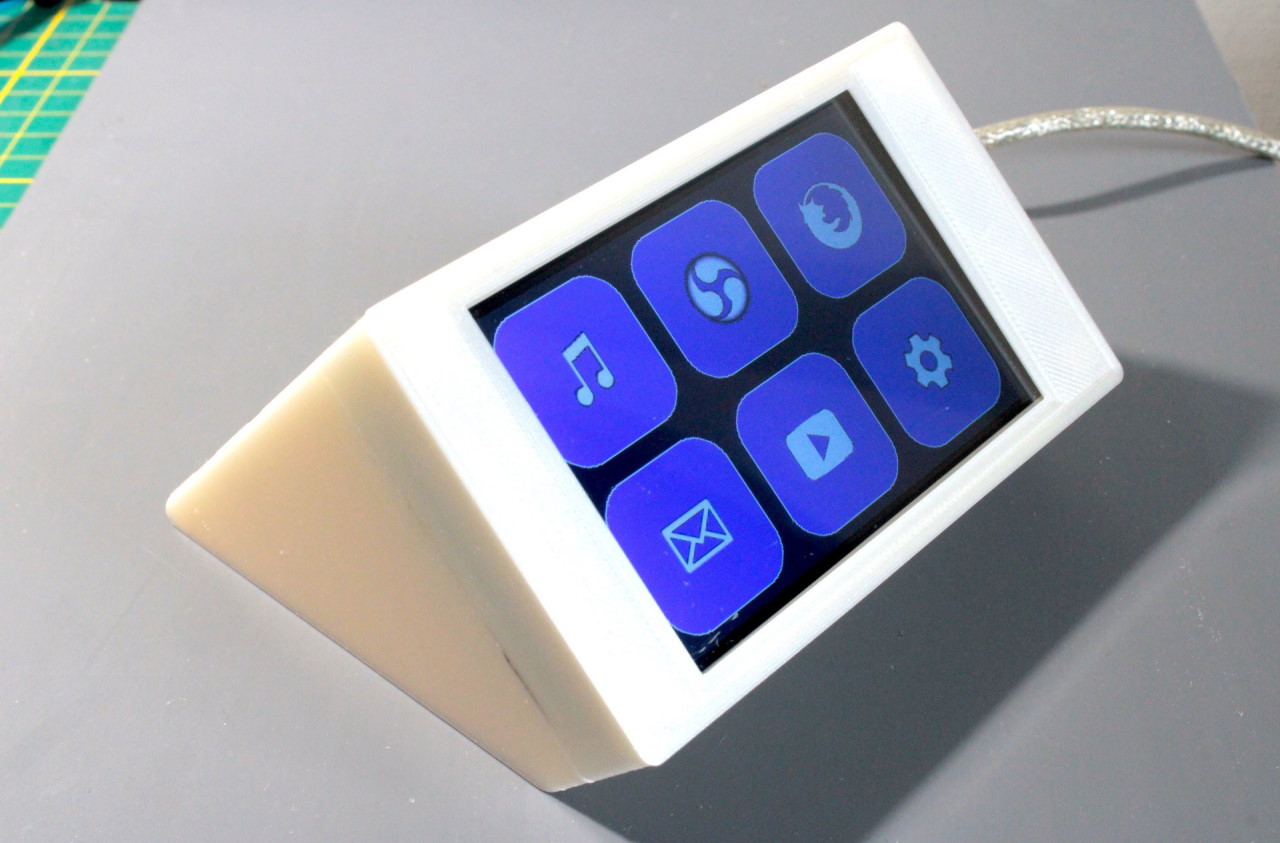

This is a kit so you need to assemble the parts yourself. Some soldering skills are required. You can 3D print a custom enclosure.

Product Video~

3D Printed Cases~

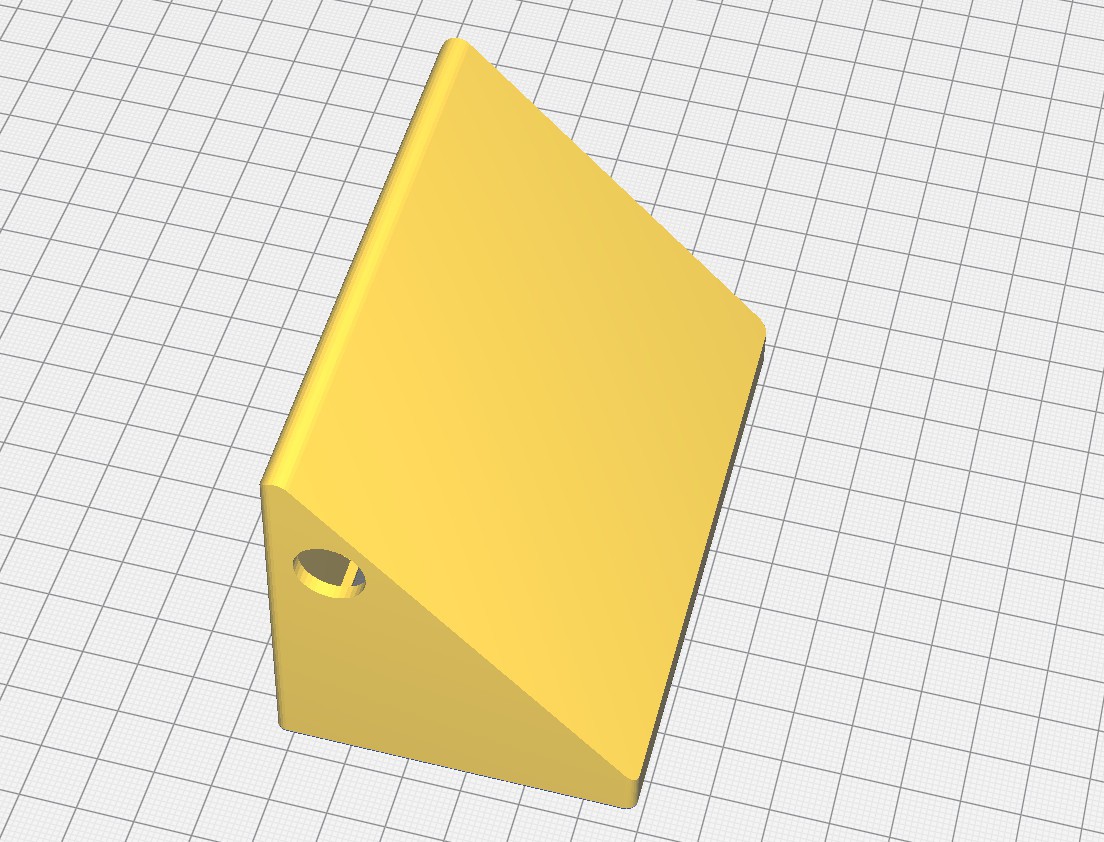

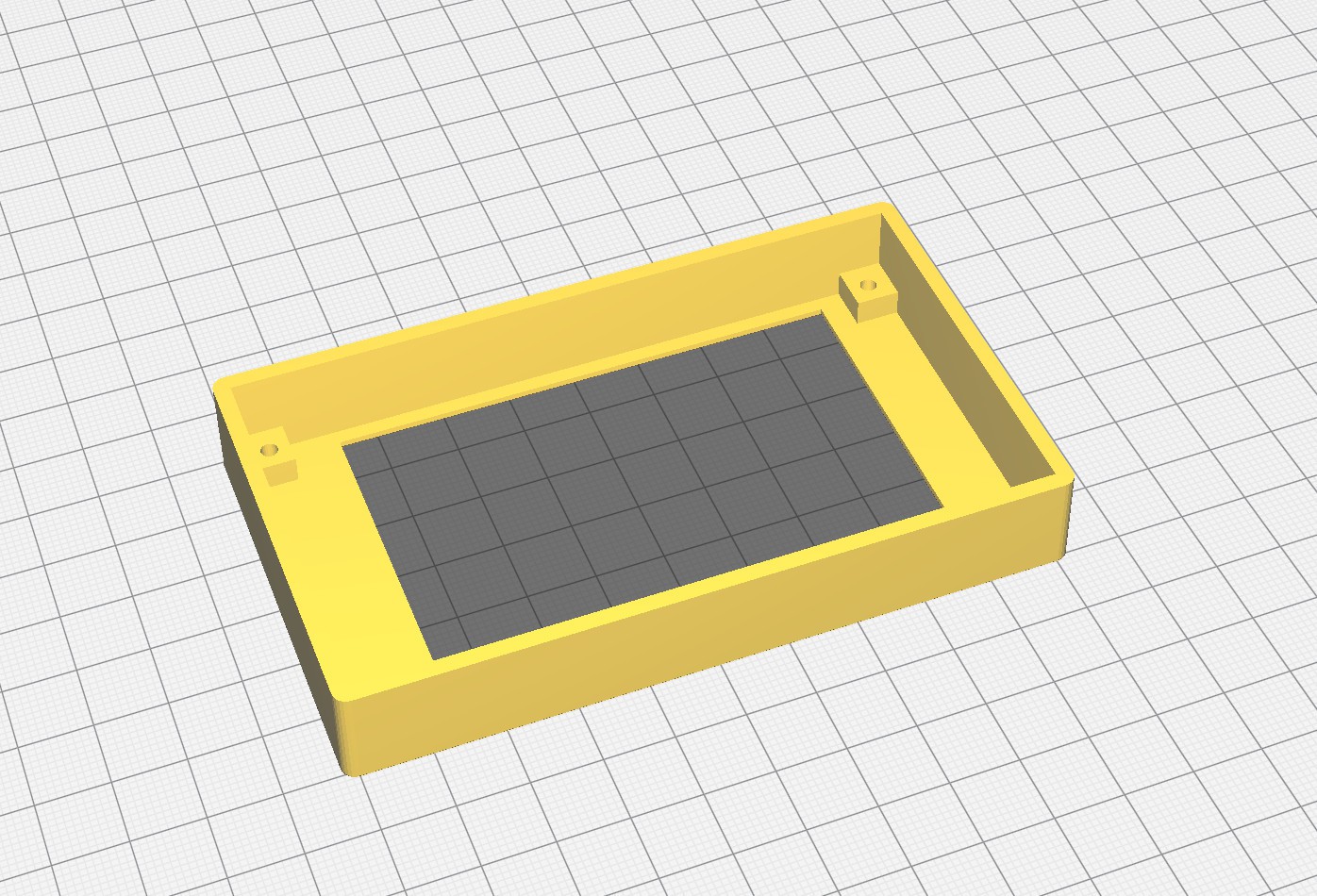

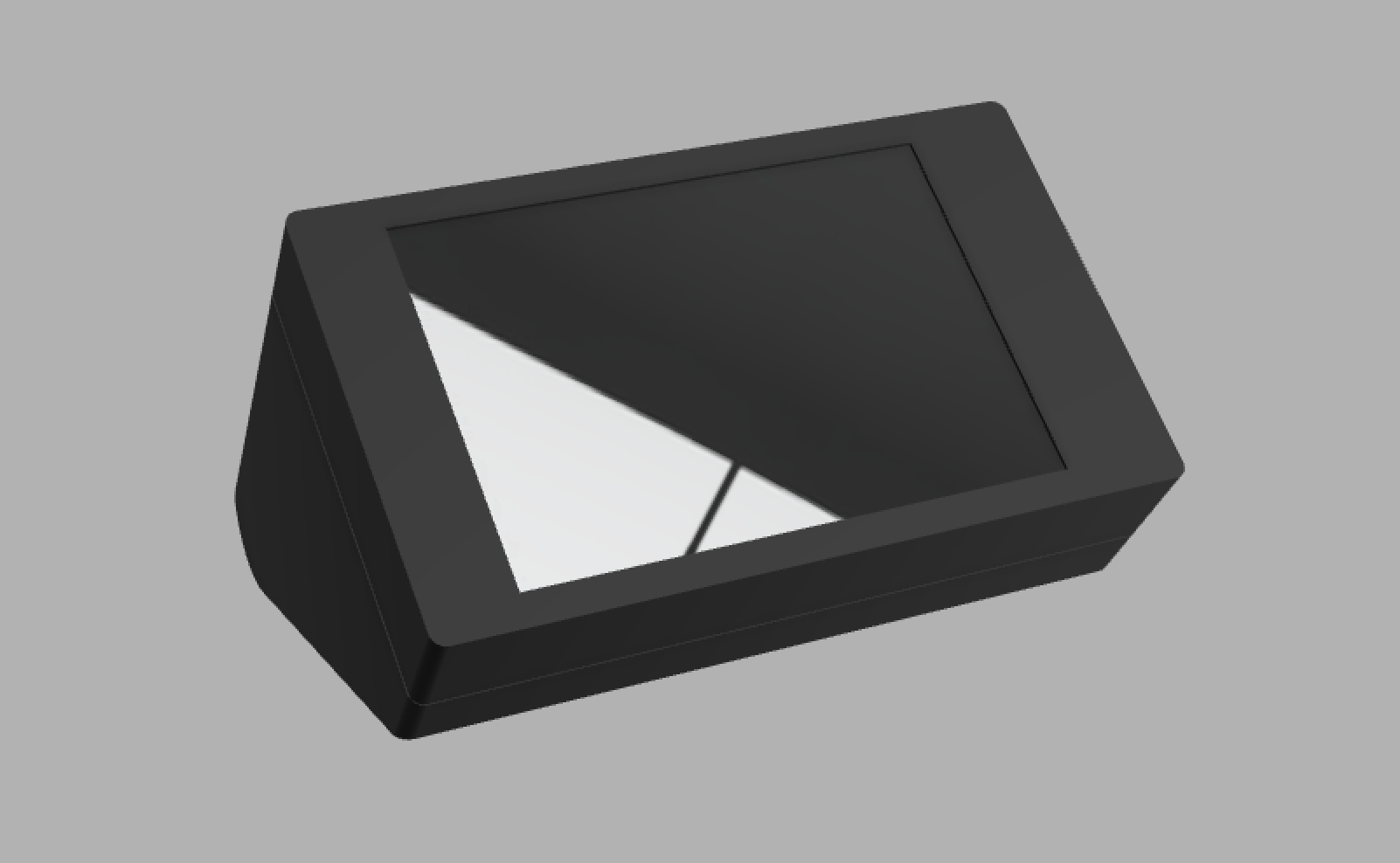

You can find a 3D printable case on Thingiverse and Github.

Flashing~

The FreeTouchDeck can easily be flashed over USB like any ESP32 development board.

GPIO Settings~

These pins can be used freely as GPIOs:

PCB Blueprint~

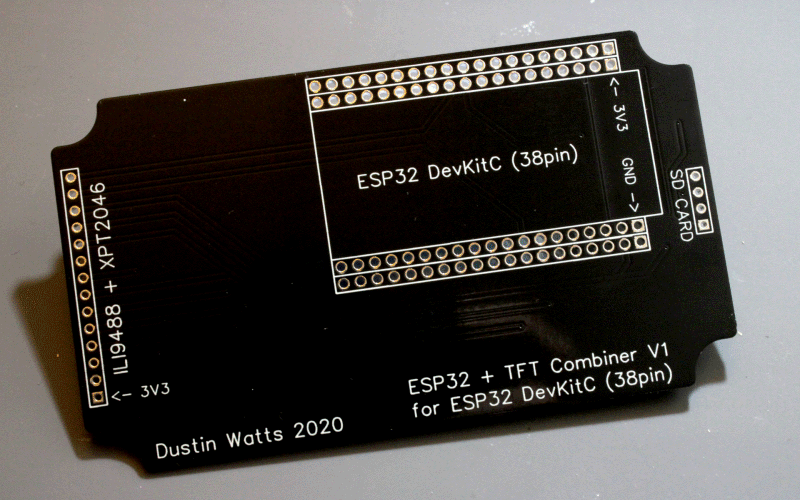

The PCB Combiner is fully Open Source Hardware:

  • Schematics
  • PCB layout

HASP build_flags~

Specify the LCD Configuration to use and define the GPIOs in the environment build flags:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
build_flags =
    ${env.build_flags}
    ${esp32.build_flags}

;region -- TFT_eSPI build options ------------------------
    -D USER_SETUP_LOADED=1
    -D ILI9488_DRIVER=1
    -D TFT_ROTATION=0 ; 0=0, 1=90, 2=180 or 3=270 degree
    -D TFT_WIDTH=320
    -D TFT_HEIGHT=480
    -D TFT_MISO=19    ; don't connect TFT SDO if other SPI devices share MISO
    -D TFT_MOSI=23
    -D TFT_SCLK=18
    -D TFT_CS=15      ; Chip select control pin
    -D TFT_DC=2       ; Data Command control pin
    -D TFT_RST=4      ; Reset pin (could connect to RST pin)
    -D TFT_BCKL=32    ; Default, configurable via web UI (e.g. 2 for D4)
    -D SUPPORT_TRANSACTIONS
    -D TOUCH_CS=21
    -D TOUCH_DRIVER=2046 ; XPT2606 Resistive touch panel driver
    -D SPI_FREQUENCY=27000000
    -D SPI_TOUCH_FREQUENCY=2500000
    -D SPI_READ_FREQUENCY=20000000
;endregion
