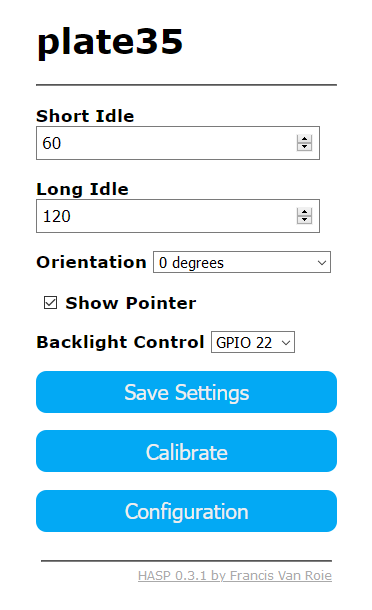

Display Settings~
Define the overal settings of the display driver.
Web UI~
Short Idle~
When the display has not been touched for the Short Idle amount of seconds, an idle = short
event will be sent out.
Long Idle~
When the display has not been touched for Long + Short Idle amount of seconds, an idle = long
event will be sent out.
The Long Idle period begins to count after the Short Idle period.
Orientation~
Rotate the display by the set number of degrees and optionally mirror the display as well.
Show Pointer~
Enable this option to show a mouse pointer. This helps with checking if the touches are correctly detected.
Backlight Control~
Sets the GPIO pin which is used for PWM dimming of the backlight.
Calibrate~
Only available with XPT2046 resistive touchscreen controllers.
Starts an onscreen calibration sequence.
Click 'Save Settings' to save your settings to the device. A restart is required to make the settings active. Navigate back to the Main Menu and click Restart to activate the settings.
