Compiling online with Gitpod~
Even though openHASP is available in several pre-compiled firmware variants, sometimes the ready-to-flash binaries aren't enough.
If you need to customize some features, or simply change some parameters, then you need to compile a firmware binary yourself.
If you don't want to install an IDE (Integrated Development Environment) like PlatformIO or ATOM on your computer, compiling your own firmware is a breeze using Gitpod.
Gitpod is a web browser based online IDE. All you need to use it is to link your GitHub account (or make a new one here). Gitpod will take care of all the necessary software package dependencies for you.
Load openHASP project in Gitpod~
Click on one of the links below, and that will automatically load Gitpod with openHASP prepared for creating your custom build:
- Release (for example 0.6.2): https://gitpod.io#https://github.com/HASwitchPlate/openHASP/tree/0.6.2
- Development (main branch): https://gitpod.io#https://github.com/HASwitchPlate/openHASP

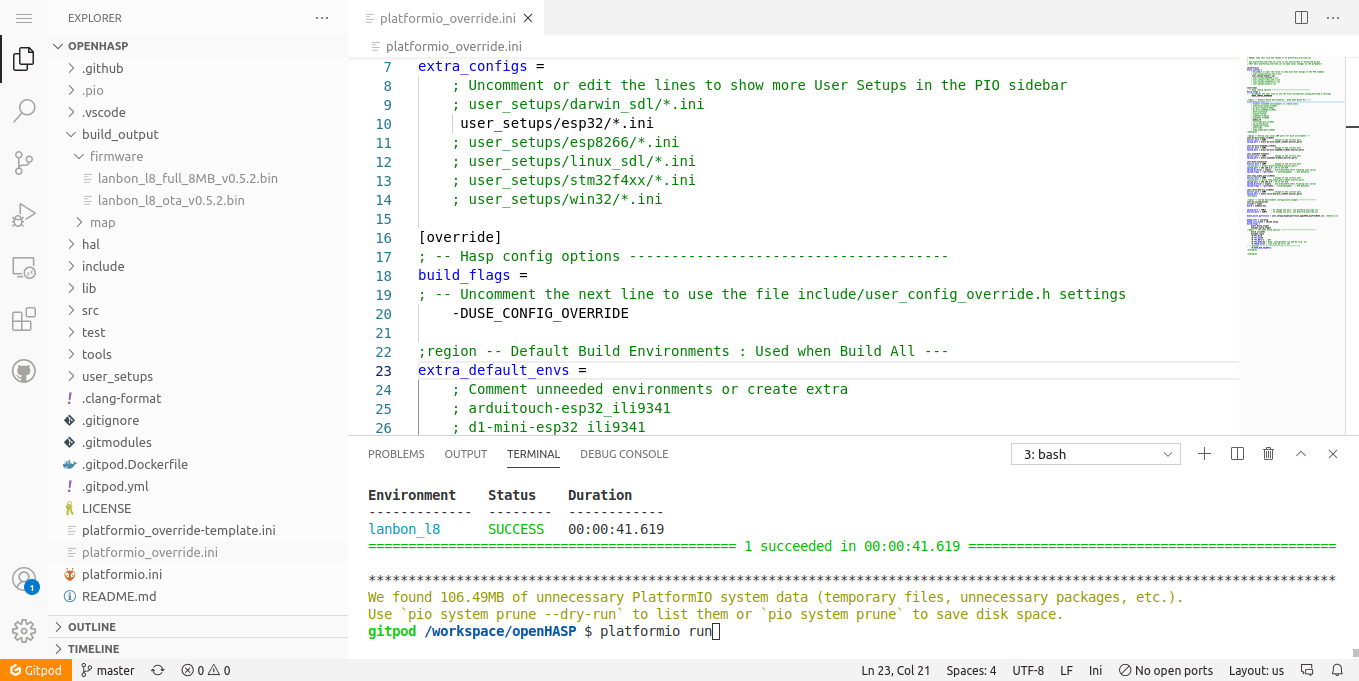

After Gitpod loads the project, you will be greeted by the main window.
Choose the version you need~
A copy of platformio_override-template.ini
to platformio_override.ini
will be readily prepared for you.
Click platformio_override.ini
to open it, and to select your firmware flavour for your hardware uncomment in the extra_configs
section the platform of your hadware, for example for ESP32:
[platformio]
extra_configs =
; Uncomment or edit the lines to show more User Setups in the PIO sidebar
; user_setups/darwin_sdl/*.ini
user_setups/esp32/*.ini
; user_setups/esp8266/*.ini
; user_setups/linux_sdl/*.ini
If you use customization, remove the comment from the line -DUSE_CONFIG_OVERRIDE
and make sure you have your own user_config_override.h
in place:
(please consider before saving your wifi and mqtt credentials to an online cloud)
[override]
; -- Hasp config options --------------------------------------
build_flags =
; -- Uncomment the next line to use the file include/user_config_override.h settings
-DUSE_CONFIG_OVERRIDE
And finally select your supported hardware from the extra_default_envs
section by uncommenting the corresponding line. For example to build firmware for Lanbon L8, you should remove that comment only:
extra_default_envs =
; Comment unneeded environments or create extra
; arduitouch-esp32_ili9341
; d1-mini-esp32_ili9341
; d1-mini-esp8266_ili9341
; d132-unoshield
; esp12e-st7735
; esp32dev-mrb3511
; esp32dev-ili9488
lanbon_l8
; lolin-d32-pro_ili9341
; my_custom_build
; nodemcu32s-raspi
; wt32-sc01
; ttgo_esp32_poe-ili9341
Ctrl + S
or selecting Save
from the top-left menu.
Note
You can of course uncomment multiple lines, the system will make builds for each. Note that these environments rely on the platforms above so double-check that your hardware has the correct platform enabled in the extra_configs
section!
Warning
If you build from a development branch, you may not get the expected results, as it may contain undocumented or buggy features. Also, most likely a development branch has verbose logging enabled by default which adversely affects performance (for example setting HASP_LOG_LEVEL
back to LOG_LEVEL_TRACE
may bring speed to normal, otherwise the plate may become laggy).
Build the firmware~
To generate your customized firmware build, type platformio run
in the command line area at the bottom, and press Enter key.
Download the build~
After the build successfully finishes, you will be able to find the downloadable binaries on the left panel, in the build_output\firmware
folder.
