Installation and Example~

Page Layout

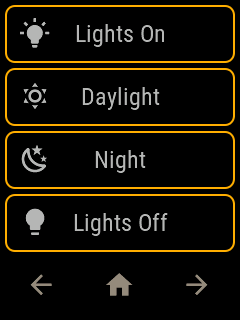

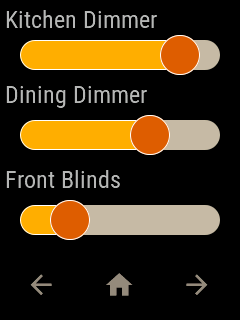

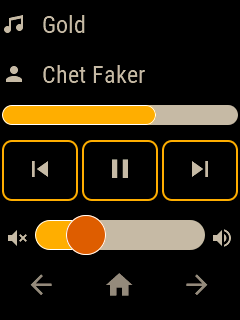

Screenshot Screenshot Screenshot

We call plate any device running openHASP in your system.

Installation~

The openHAB configuration files to have this demo load automatically can be found here.

Update the IP-address for your MQTT-broker in the haspLVGL_demo.things file.

Make sure you have your plate connected to the network and to your MQTT boker, and your topic is set to demo_plate.

Code~

To add an openhasp plate to your installation with Jaffa Sunrise sample configuration, upload a pages.jsonl file with the folowing content to your plate:

  • in the plate's web UI select Mono UI theme and reboot,
  • upload a pages.jsonl file with the folowing content to your plate and reboot:
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
{"page":1,"comment":"---------- Page 1 ----------"}
{"obj":"btn","id":4,"x":5,"y":5,"w":230,"h":58,"bg_color":"#000000","border_color":"#FFAC00","border_width":2,"radius":10,"radius1":10,"radius2":10,"text":"Lights On","value_ofs_x":-85,"value_font":32,"value_str":"\uE6E8","value_color":"#B6B6B6","text_color":"#B6B6B6","text_font":24}
{"obj":"btn","id":5,"x":5,"y":68,"w":230,"h":58,"bg_color":"#000000","border_color":"#FFAC00","border_width":2,"radius":10,"radius1":10,"radius2":10,"text":"Daylight","value_ofs_x":-85,"value_font":32,"value_str":"\uE599","value_color":"#B6B6B6","text_color":"#B6B6B6","text_font":24}
{"obj":"btn","id":6,"x":5,"y":131,"w":230,"h":58,"bg_color":"#000000","border_color":"#FFAC00","border_width":2,"radius":10,"radius1":10,"radius2":10,"text":"Night","value_ofs_x":-85,"value_font":32,"value_str":"\uE594","value_color":"#B6B6B6","text_color":"#B6B6B6","text_font":24}
{"obj":"btn","id":7,"x":5,"y":194,"w":230,"h":58,"bg_color":"#000000","border_color":"#FFAC00","border_width":2,"radius":10,"radius1":10,"radius2":10,"text":"Lights Off","value_ofs_x":-85,"value_font":32,"value_str":"\uE335","value_color":"#B6B6B6","text_color":"#B6B6B6","text_font":24}

{"page":2,"comment":"---------- Page 2 ----------"}
{"obj":"label","id":8,"x":5,"y":5,"w":230,"h":30,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"radius":10,"radius1":10,"radius2":10,"text":"Kitchen Dimmer","text_color":"#B6B6B6","text_font":24}
{"obj":"label","id":9,"x":5,"y":80,"w":230,"h":30,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"radius":10,"radius1":10,"radius2":10,"text":"Dining Dimmer","text_color":"#B6B6B6","text_font":24}
{"obj":"label","id":10,"x":5,"y":165,"w":230,"h":30,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"radius":10,"radius1":10,"radius2":10,"text":"Front Blinds","text_color":"#B6B6B6","text_font":24}
{"obj":"slider","id":11,"x":20,"y":40,"w":200,"h":30,"bg_color":"#C7BAA7","border_color":"#C7BAA7","border_width":0,"radius":15,"radius1":15,"radius2":20,"text_font":1,"val":80,"bg_color1":"#FFAC00","bg_color2":"#DC5C05"}
{"obj":"slider","id":12,"x":20,"y":120,"w":200,"h":30,"bg_color":"#C7BAA7","border_color":"#C7BAA7","border_width":0,"radius":15,"radius1":15,"radius2":20,"text_font":1,"val":65,"bg_color1":"#FFAC00","bg_color2":"#DC5C05"}
{"obj":"slider","id":13,"x":20,"y":205,"w":200,"h":30,"bg_color":"#C7BAA7","border_color":"#C7BAA7","border_width":0,"radius":15,"radius1":15,"radius2":20,"text_font":1,"val":25,"bg_color1":"#FFAC00","bg_color2":"#DC5C05"}

{"page":3,"comment":"---------- Page 3 ----------"}
{"obj":"label","id":14,"x":42,"y":10,"w":236,"h":30,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"text":"Gold","text_color":"#C7BAA7","text_font":24}
{"obj":"label","id":15,"x":42,"y":60,"mode":"scroll","w":236,"h":30,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"text":"Chet Faker","text_color":"#C7BAA7","text_font":24}
{"obj":"btn","id":16,"x":2,"y":140,"w":76,"h":61,"bg_color":"#000000","border_color":"#FFAC00","border_width":2,"radius":10,"radius1":10,"radius2":10,"text":"\uE4AE","text_color":"#C7BAA7","text_font":32}
{"obj":"btn","id":17,"x":82,"y":140,"w":76,"h":61,"bg_color":"#000000","border_color":"#FFAC00","border_width":2,"radius":10,"radius1":10,"radius2":10,"text":"\uE3E4","text_color":"#C7BAA7","text_font":32}
{"obj":"btn","id":18,"x":162,"y":140,"w":76,"h":61,"bg_color":"#000000","border_color":"#FFAC00","border_width":2,"radius":10,"radius1":10,"radius2":10,"text":"\uE4AD","text_color":"#C7BAA7","text_font":32}
{"obj":"bar","id":19,"x":2,"y":105,"w":236,"h":20,"bg_color":"#C7BAA7","border_color":"#C7BAA7","border_width":0,"radius":15,"radius1":15,"radius2":15,"text_font":1,"val":65,"bg_color1":"#FFAC00"}
{"obj":"slider","id":20,"x":35,"y":220,"w":170,"h":30,"bg_color":"#C7BAA7","border_color":"#C7BAA7","border_width":0,"radius":15,"radius1":15,"radius2":20,"text_font":1,"val":30,"bg_color1":"#FFAC00","bg_color2":"#DC5C05"}
{"obj":"label","id":21,"x":2,"y":10,"w":40,"h":61,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"text":"\uE75A","text_color":"#C7BAA7","text_font":24}
{"obj":"label","id":22,"x":2,"y":60,"w":36,"h":61,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"text":"\uE004","text_color":"#C7BAA7","text_font":24}
{"obj":"label","id":23,"x":5,"y":224,"w":25,"h":40,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"text":"\uE75F","text_color":"#C7BAA7","text_font":24}
{"obj":"label","id":24,"x":210,"y":224,"w":25,"h":40,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"text":"\uE57E","text_color":"#C7BAA7","text_font":24}

{"page":0,"comment":"---------- All pages ----------"}
{"obj":"btn","id":1,"x":5,"y":257,"w":73,"h":58,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"radius":10,"radius1":10,"radius2":10,"text":"\uE04D","text_color":"#978B7D","text_font":32}
{"obj":"btn","id":2,"x":83,"y":257,"w":73,"h":58,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"radius":10,"radius1":10,"radius2":10,"text":"\uE2DC","text_color":"#978B7D","text_font":32}
{"obj":"btn","id":3,"x":161,"y":257,"w":73,"h":58,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"radius":10,"radius1":10,"radius2":10,"text":"\uE054","text_color":"#978B7D","text_font":32}

Restart the plate and the demo page should load automatically to your device.
