Example Configurations

Note

Some examples below may generate errors during Home Assistant startup. Log messages like Error while processing template or Template variable error: 'None' has no attribute 'last_changed' etc. can be caused by the fact that openHASP component loads faster than the other integrations you have set up, from where you want to pull data. Because the data required by openHASP component is not yet available, an error is generated. But as soon as Home Assistant finishes loading everything, and all the data you've configured is available, things will be normal. Nevertheless the log should be checked regularly to find repetitive problems.

Display clock and temperature~

screenshot

The easiest example is to display the state of a clock and a temperature sensor from Home Assistant, using label objects in openHASP.

Create a label object to display the temperature value, a separate label object to display the unit and a third label object for the clock:

1
2
3
{"page":0,"id":4,"obj":"label","x":175,"y":5,"h":30,"w":45,"text":"00.0","align":2,"bg_color":"#2C3E50"}
{"page":0,"id":5,"obj":"label","x":220,"y":5,"h":30,"w":45,"text":"°C","align":0,"bg_color":"#2C3E50"}
{"page":0,"id":6,"obj":"label","x":3,"y":5,"h":30,"w":62,"text":"00:00","align":0,"bg_color":"#2C3E50"}

In component configuration all you need for the objects is:

1
2
3
4
5
6
7
    objects:
      - obj: "p0b4"
        properties:
          "text": "{{ states('sensor.my_room_temperature') }}"
      - obj: "p0b6"
        properties:
          "text": "{{ states('sensor.time') }}"

Note:~

You can of course omit the second label object with the unit and use the same for both value and unit:

1
2
{"page":0,"id":4,"obj":"label","x":175,"y":5,"h":30,"w":62,"text":"00.0°C","align":2,"bg_color":"#2C3E50"}
{"page":0,"id":6,"obj":"label","x":3,"y":5,"h":30,"w":62,"text":"00:00","align":0,"bg_color":"#2C3E50"}

In component configuration you will add the unit to the value using the template:

1
2
3
4
    objects:
      - obj: "p0b4"
        properties:
          "text": "{{ states('sensor.my_room_temperature') }}°C"

All these being on page 0 means that they will appear on all the pages.

Some basic controls~

Jsonl and Home Assistant configuration:

Toggle a light (or any switchable entity with on/off states)~

screenshot

1
{"page":1,"id":2,"obj":"btn","x":10,"y":40,"w":105,"h":90,"toggle":true,"text":"\uE335","text_font":32,"align":1}

1
2
3
4
5
6
7
8
      - obj: "p1b2" # switch, checkbox or btn with toggle true
        properties:
          "val": '{{ 1 if is_state("light.my_lamp", "on") else 0 }}'
          "text": '{{ "\uE6E8" if is_state("light.my_lamp", "on") else "\uE335" | e }}'
        event:
          "down":
            - service: homeassistant.toggle
              entity_id: "light.my_lamp"

1
{"page":1,"id":3,"obj":"dropdown","x":5,"y":40,"w":230,"h":30,"options":""}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
      - obj: "p1b3" # dropdown
        properties:
          "options": >
            {% if not (is_state('input_select.my_dropdown_selections','unavailable')) %}{%for item in state_attr('input_select.my_dropdown_selections','options')%}{{item+"\n"|e}}{%-if not loop.last%}{%-endif%}{%-endfor%}{% endif %}
          "val": >
            {% if not (is_state('input_select.my_dropdown_selections','unavailable')) %}{%for item in state_attr('input_select.my_dropdown_selections','options')%}
            {{loop.index -1 if item == states('input_select.my_dropdown_selections') }}
            {%-endfor%}{% endif %}
        event:
          "changed":
            - service: input_select.select_option
              data:
                option: '{{ text }}'
              target:
                entity_id: input_select.my_dropdown_selections
            - service: persistent_notification.create
              data:
                message: Selected {{ text }}

Color coded icons~

icons

Color code a WiFi icon according to RSSI reported by the plate

openHASP config: (screen size 240x320)

1
{"obj":"btn","id":1,"x":120,"y":1,"w":30,"h":40,"text_font":"2","text":"\uE5A9","text_color":"gray","bg_opa":0,"border_width":0}

relevant openHASP-custom-component config:

1
2
3
    - obj: "p0b1"
      properties:
        "text_color": "{% if -30 <= state_attr('openhasp.openhasp_plate','rssi') |int %}green{% elif -31 > state_attr('openhasp.openhasp_plate','rssi') |int >= -50 %}orange{% elif -51 > state_attr('openhasp.openhasp_plate','rssi') |int >= -80 %}tomato{% else %}red{% endif %}"

Color code a temperature icon according to sensor values

openHASP config: (screen size 240x320)

1
{"obj":"btn","id":3,"x":165,"y":1,"w":30,"h":40,"text_font":"2","text":"\uE50F","text_color":"gray","bg_opa":0,"border_width":0}

relevant openHASP-custom-component config:

1
2
3
    - obj: "p0b3"
      properties:
        "text_color": "{% if states('sensor.room_temperature') |int <= 21  %}#4682B4{% elif 21 < states('sensor.room_temperature') |int <= 26 %}green{% else %}red{% endif %}"

Light brightness and color~

screenshot

Have a light in Home Assistant controlled by openHASP. In our example we use Lanbon L8's moodlight which has both brightness and color - we use a slider object for the brightness, and a cpicker object for color.

relevant openHASP config:

1
2
{"page":1,"id":31,"obj":"slider","x":6,"y":15,"w":14,"h":180,"min":1,"max":255}
{"page":1,"id":32,"obj":"cpicker","x":30,"y":10,"w":180,"h":180}

relevant openHASP-custom-component config:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
      - obj: "p1b31" # Light brightness
        properties:
          "val": "{{ state_attr('light.plate_moodlight', 'brightness') if state_attr('light.plate_moodlight', 'brightness') != None else 0 }}"
        event:
          "changed":
            - service: light.turn_on
              data:
                entity_id: light.plate_moodlight
                brightness:  "{{ val }}"
          "up":
            - service: light.turn_on
              data:
                entity_id: light.plate_moodlight
                brightness:  "{{ val }}"

      - obj: "p1b32" # Light color
        properties:
          "color": >
            {% if is_state('light.plate_moodlight','on') %}
            {% set rgb = state_attr('light.plate_moodlight','rgb_color') %}
            {{ "#%02x%02x%02x" | format(rgb[0],rgb[1],rgb[2]) }}
            {% endif %}
        event:
          "up":
            - service: light.turn_on
              data:
                entity_id: light.plate_moodlight
                rgb_color: "[{{ r }},{{ g }},{{ b }}]"
The brightness slider value gets updated from the brightness attribute of light.plate_moodlight, while it's on. If it's off, that attribute is removed by Home Assistant, in that case we set it to 0.

The color property gets updated from the rgb_color attriburte of the light. The R, G and B decimal color values are converted to hexadecimal html color code using a template whenever the color of the light changes in Home Assistant.

When somebody changes the color of the picker object on the page, the light in Home Assistant gets updated with rgb_color values received in the MQTT message from the plate.

Cover with state feedback~

screenshot

The icon on the up and down buttons change color when covers move and set opacity when reached to limit. UI theme set to Hasp Light in plate's web interface.

relevant openHASP config: (screen size 240x320)

1
2
3
{"page":1,"id":4,"obj":"btn","x":5,"y":140,"w":73,"h":60,"toggle":false,"text":"\uE05D","text_font":32}
{"page":1,"id":5,"obj":"btn","x":83,"y":140,"w":73,"h":60,"toggle":false,"text":"\uE4DB","text_font":32}
{"page":1,"id":6,"obj":"btn","x":161,"y":140,"w":73,"h":60,"toggle":false,"text":"\uE045","text_font":32}

relevant openHASP-custom-component config:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
      - obj: "p1b4"
        properties:
          "text_color": "{{ '#FFFF00' if is_state('cover.cover_1', 'opening') else '#FFFFFF' }}"
          "text_opa": "{{ '80' if is_state_attr('cover.cover_1','current_position', 100) else '255' }}"
        event:
          "down":
            - service: cover.open_cover
              target:
                entity_id: "cover.cover_1"
      - obj: "p1b5"
        properties:
          "text": >
            {% if is_state('cover.cover_1', 'closing') %}
            {{ "\uE4DB" | e }}
            {%-elif is_state('cover.cover_1', 'opening') %}
            {{ "\uE4DB" | e }}
            {%-elif is_state('cover.cover_1', 'closed') %}
            {{ "\uF11C" | e }}
            {%-elif is_state('cover.cover_1', 'open') %}
            {{ "\uF11E" | e }}
            {% endif %}
        event:
          "down":
            - service: cover.stop_cover
              target:
                entity_id: "cover.cover_1"
      - obj: "p1b6"
        properties:
          "text_color": "{{ '#FFFF00' if is_state('cover.cover_1', 'closing') else '#FFFFFF' }}"
          "text_opa": "{{ '80' if is_state_attr('cover.cover_1','current_position', 0) else '255' }}"
        event:
          "down":
            - service: cover.close_cover
              target:
                entity_id: "cover.cover_1"

Cover with button matrix~

A simpler cover control with only basic feedback. UI theme set to Hasp Light in plate's web interface.

relevant openHASP config: (screen size 240x320)

1
{"page":4,"id":20,"obj":"btnmatrix","x":0,"y":20,"w":240,"h":70,"options":["\uE05D","\uE4DB","\uE045"],"text_font":32,"bg_opa":0,"border_opa":0}

relevant openHASP-custom-component config:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
      - obj: "p4b20"
        properties:
          "options": >
            {% if is_state('cover.cover_1', 'closing') %}
            ["\uE05D","\uE4DB","#FFFF00 \uE045"]
            {%-elif is_state('cover.cover_1', 'opening') %}
            ["#FFFF00 \uE05D","\uE4DB","\uE045"]
            {%-else %}
            ["\uE05D","\uE4DB","\uE045"]
            {% endif %}
        event:
          "down":
            - service: >
                {% if val == 0 %}
                cover.open_cover
                {%-elif val == 1 %}
                cover.stop_cover
                {%-elif val == 2 %}
                cover.close_cover
                {% endif %}
              target:
                entity_id: cover.cover_1

Covers like in Lovelace~

screenshot

The icon behaves like in Lovelace. UI theme set to Hasp Light in plate's web interface.

Check out the Lovelace-like entities for similar placement.

relevant openHASP config: (screen size 240x320, UI Theme: Hasp Light)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
{"page":5,"id":12,"obj":"label","x":8,"y":33,"w":35,"h":35,"text":"\uF11D","align":1,"text_font":32,"text_color":"#053248"}
{"page":5,"id":13,"obj":"label","x":48,"y":43,"w":80,"h":30,"text":"Cover 1","align":0,"text_font":16,"text_color":"#053248"}
{"page":5,"id":14,"obj":"btn","x":125,"y":37,"w":30,"h":30,"toggle":false,"text":"\uE05D","text_font":32,"bg_opa":0,"border_opa":0,"text_color":"#053248"}
{"page":5,"id":15,"obj":"btn","x":165,"y":37,"w":30,"h":30,"toggle":false,"text":"\uE4DB","text_font":32,"bg_opa":0,"border_opa":0,"text_color":"#053248"}
{"page":5,"id":16,"obj":"btn","x":205,"y":37,"w":30,"h":30,"toggle":false,"text":"\uE045","text_font":32,"bg_opa":0,"border_opa":0,"text_color":"#053248"}

{"page":5,"id":22,"obj":"label","x":8,"y":69,"w":35,"h":35,"text":"\uF11D","align":1,"text_font":32,"text_color":"#053248"}
{"page":5,"id":23,"obj":"label","x":48,"y":79,"w":80,"h":30,"text":"Cover 2","align":0,"text_font":16,"text_color":"#053248"}
{"page":5,"id":24,"obj":"btn","x":125,"y":73,"w":30,"h":30,"toggle":false,"text":"\uE05D","text_font":32,"bg_opa":0,"border_opa":0,"text_color":"#053248"}
{"page":5,"id":25,"obj":"btn","x":165,"y":73,"w":30,"h":30,"toggle":false,"text":"\uE4DB","text_font":32,"bg_opa":0,"border_opa":0,"text_color":"#053248"}
{"page":5,"id":26,"obj":"btn","x":205,"y":73,"w":30,"h":30,"toggle":false,"text":"\uE045","text_font":32,"bg_opa":0,"border_opa":0,"text_color":"#053248"}

relevant openHASP-custom-component config:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
      - obj: "p5b12"
        properties:
          "text": >
            {% if is_state('cover.my_cover', 'closing') %}
            {{ "\uE6C0" | e }}
            {%-elif is_state('cover.my_cover', 'opening') %}
            {{ "\uE6C3" | e }}
            {%-elif is_state('cover.my_cover', 'closed') %}
            {{ "\uF11C" | e }}
            {%-elif is_state('cover.my_cover', 'open') %}
            {{ "\uF11E" | e }}
            {% endif %}
      - obj: "p5b14"
        event:
          "down":
            - service: cover.open_cover
              target:
                entity_id: "cover.my_cover"
      - obj: "p5b15"
        event:
          "down":
            - service: cover.stop_cover
              target:
                entity_id: "cover.my_cover"
      - obj: "p5b16"
        event:
          "down":
            - service: cover.close_cover
              target:
                entity_id: "cover.my_cover"

Media player~

screenshot

The labels with artist and title are scrolling, the progressbar fills if the media player provides duration and playback position. The dropdown lists containing the available sources and sound modes of the player get populated automatically by the values existing on the player in Home Assistant, and also the actually selected source is in sync with it.

Player availability is shown by the opacity of the buttons. Player state (play/pause) is shown by the middle button, short pressing means pause, long-press means stop. Power state shown by color, repeat, shuffle and muted state shown by appropriate icons on the buttons. UI theme set to Hasp Light in plate's web interface.

relevant openHASP config: (screen size 240x320)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
{"page":6,"id":10,"obj":"obj","x":5,"y":35,"w":230,"h":250,"click":0,"bg_opa":0,"shadow_opa":140,"shadow_color":"black","shadow_width":20,"shadow_spread":0}
{"page":6,"id":11,"obj":"obj","x":8,"y":38,"w":200,"h":84,"click":0}
{"page":6,"id":12,"obj":"label","x":10,"y":48,"w":196,"h":30,"text":"-","mode":"scroll","align":1}
{"page":6,"id":13,"obj":"label","x":10,"y":83,"w":196,"h":30,"text":"-","mode":"scroll","align":1}
{"page":6,"id":14,"obj":"bar","x":8,"y":117,"w":200,"h":5,"min":0,"max":100,"border_opa":0,"pad_top":0,"pad_bottom":0,"pad_left":0,"pad_right":0}
{"page":6,"id":15,"obj":"dropdown","x":8,"y":129,"w":120,"h":30,"options":"Source1\nSource2\nSource3","direction":3,"max_height":300,"radius":5}
{"page":6,"id":16,"obj":"dropdown","x":133,"y":129,"w":75,"h":30,"options":"Jazz\nPop\nRock","direction":2,"radius":5}
{"page":6,"id":17,"obj":"btn","x":8,"y":166,"w":50,"h":70,"toggle":false,"text":"\uE4AE","text_font":32}
{"page":6,"id":18,"obj":"btn","x":66,"y":166,"w":83,"h":70,"toggle":false,"text":"\uE40A","text_font":32}
{"page":6,"id":19,"obj":"btn","x":157,"y":166,"w":51,"h":70,"toggle":false,"text":"\uE4AD","text_font":32}
{"page":6,"id":20,"obj":"slider","x":212,"y":38,"w":20,"h":244,"min":0,"max":100,"val":85}
{"page":6,"id":21,"obj":"btn","x":8,"y":241,"w":45,"h":40,"toggle":false,"text":"\uE425","text_font":32}
{"page":6,"id":22,"obj":"btn","x":60,"y":241,"w":45,"h":40,"toggle":false,"text":"\uE457","text_font":32}
{"page":6,"id":23,"obj":"btn","x":111,"y":241,"w":45,"h":40,"toggle":false,"text":"\uE49E","text_font":32}
{"page":6,"id":24,"obj":"btn","x":163,"y":241,"w":45,"h":40,"toggle":false,"text":"\uE57E","text_font":32}

relevant openHASP-custom-component config:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
      - obj: "p6b12" # artist label
        properties:
          "text": "{{ state_attr('media_player.sound_my_room1','media_artist') if state_attr('media_player.sound_my_room1','media_artist') else '-' }}"

      - obj: "p6b13" # title label
        properties:
          "text": "{{ state_attr('media_player.sound_my_room1','media_title') if state_attr('media_player.sound_my_room1','media_title') else '-' }}"

      - obj: "p6b15" # sources list
        properties:
          "options": >
            {% if not (is_state('media_player.sound_my_room1','unavailable')) %}
            {{"(no source)\n"|e}}
            {%- for source in state_attr('media_player.sound_my_room1','source_list') -%}
            {{source+"\n"|e}}{%-if not loop.last%}{%-endif%}{%-endfor%}{%-endif %}
          "val": >
            {% if not (is_state('media_player.sound_my_room1','unavailable')) %}
            {% if state_attr('media_player.sound_my_room1','source') == None %}0{% else %}
            {%for source in state_attr('media_player.sound_my_room1','source_list')%}
            {{loop.index if source == state_attr('media_player.sound_my_room1','source') }}
            {%-endfor%}{%-endif %}{%-endif %}
          "click": "{{ 'false' if (is_state('media_player.sound_my_room1','unavailable') or is_state('media_player.sound_my_room1','unknown')) else 'true' }}"
        event:
          "changed":
            - service: media_player.select_source
              data:
                entity_id: media_player.sound_my_room1
                source: "{{ text }}"

      - obj: "p6b16" # sound modes list
        properties:
          "options": >
            {% if not (is_state('media_player.sound_my_room1','unavailable')) %}
            {%-for soundmode in state_attr('media_player.sound_my_room1','sound_mode_list')-%}
            {{soundmode+"\n"|e}}{%-if not loop.last%}{%-endif%}{%-endfor%}{%-endif %}
          "val": >
            {% if not (is_state('media_player.sound_my_room1','unavailable')) %}{%for source in state_attr('media_player.sound_my_room1','sound_mode_list')%}
            {{loop.index -1 if source == state_attr('media_player.sound_my_room1','sound_mode') }}
            {%-endfor%}{% endif %}
          "click": "{{ 'false' if (is_state('media_player.sound_my_room1','unavailable') or is_state('media_player.sound_my_room1','unknown')) else 'true' }}"
        event:
          "changed":
            - service: media_player.select_sound_mode
              data:
                entity_id: media_player.sound_my_room1
                sound_mode: "{{ text }}"

      - obj: "p6b14" # progressbar
        properties:
          "max": "{{ state_attr('media_player.sound_my_room1','media_duration') | int }}"
          "val": "{{ state_attr('media_player.sound_my_room1','media_position') | int }}"

      - obj: "p6b18" # play/pause/stop
        properties:
          "text": >
            {% if is_state('media_player.sound_my_room1', 'playing') %}
            {{ "\uE3E4" | e }}
            {%-else %}
            {{ "\uE40A" | e }}
            {%-endif %}
          "text_opa": "{{ '80' if (is_state('media_player.sound_my_room1','unavailable') or is_state('media_player.sound_my_room1','unknown')) else '255' }}"
        event:
          "down":
            - service: media_player.media_play_pause
              target:
                entity_id: media_player.sound_my_room1
          "long":
            - service: media_player.media_stop
              target:
                entity_id: media_player.sound_my_room1

      - obj: "p6b17" # prev
        properties:
          "text_opa": "{{ '80' if (is_state('media_player.sound_my_room1','unavailable') or is_state('media_player.sound_my_room1','unknown')) else '255' }}"
        event:
          "down":
            - service: media_player.media_previous_track
              target:
                entity_id: media_player.sound_my_room1

      - obj: "p6b19" # next
        properties:
          "text_opa": "{{ '80' if (is_state('media_player.sound_my_room1','unavailable') or is_state('media_player.sound_my_room1','unknown')) else '255' }}"
        event:
          "down":
            - service: media_player.media_next_track
              target:
                entity_id: media_player.sound_my_room1

      - obj: "p6b20" # volume slider
        properties:
          "val": "{{ state_attr('media_player.sound_my_room1','volume_level') * 100 | int }}"
          "click": "{{ 'false' if (is_state('media_player.sound_my_room1','unavailable') or is_state('media_player.sound_my_room1','unknown')) else 'true' }}"
        event:
          "changed":
            - service: media_player.volume_set
              data:
                entity_id: media_player.sound_my_room1
                volume_level: "{{ val | int / 100 }}"
          "up":
            - service: media_player.volume_set
              data:
                entity_id: media_player.sound_my_room1
                volume_level: "{{ val | int / 100 }}"

      - obj: "p6b21" # power
        properties:
          "text_color": "{{ '#B00000' if states('media_player.sound_my_room1') == 'off' else '#FFFFFF' }}"
          "text_opa": "{{ '80' if (is_state('media_player.sound_my_room1','unavailable') or is_state('media_player.sound_my_room1','unknown')) else '255' }}"
        event:
          "down":
            - service: media_player.toggle
              data:
                entity_id: media_player.sound_my_room1

      - obj: "p6b22" # repeat
        properties:
          "text": >
            {% if is_state_attr('media_player.sound_my_room1', 'repeat', 'one') %}
            {{ "\uE458" | e }}
            {% elif is_state_attr('media_player.sound_my_room1', 'repeat', 'all') %}
            {{ "\uE456" | e }}
            {%-else %}
            {{ "\uE457" | e }}
            {%-endif %}
          "text_opa": "{{ '80' if (is_state('media_player.sound_my_room1','unavailable') or is_state('media_player.sound_my_room1','unknown')) else '255' }}"
        event:
          "down":
            - service: media_player.repeat_set
              data:
                entity_id: media_player.sound_my_room1
                repeat: >
                  {% if is_state_attr('media_player.sound_my_room1', 'repeat', 'one') %}
                  all
                  {% elif is_state_attr('media_player.sound_my_room1', 'repeat', 'all') %}
                  off
                  {% elif is_state_attr('media_player.sound_my_room1', 'repeat', 'off') %}
                  one
                  {%-endif %}

      - obj: "p6b23" # shuffle
        properties:
          "text": >
            {% if state_attr('media_player.sound_my_room1', 'shuffle') %}
            {{ "\uE49D" | e }}
            {%-else %}
            {{ "\uE49E" | e }}
            {%-endif %}
          "text_opa": "{{ '80' if (is_state('media_player.sound_my_room1','unavailable') or is_state('media_player.sound_my_room1','unknown')) else '255' }}"
        event:
          "down":
            - service: media_player.shuffle_set
              data:
                entity_id: media_player.sound_my_room1
                shuffle:  >
                  {% if state_attr('media_player.sound_my_room1', 'shuffle') %}
                  false
                  {% else %}
                  true
                  {%-endif %}

      - obj: "p6b24" # mute
        properties:
          "text": >
            {% if state_attr('media_player.sound_my_room1', 'is_volume_muted') %}
            {{ "\uE75F" | e }}
            {%-else %}
            {{ "\uE57E" | e }}
            {%-endif %}
          "text_opa": "{{ '80' if (is_state('media_player.sound_my_room1','unavailable') or is_state('media_player.sound_my_room1','unknown')) else '255' }}"
        event:
          "down":
            - service: media_player.volume_mute
              data:
                entity_id: media_player.sound_my_room1
                is_volume_muted:  >
                  {% if state_attr('media_player.sound_my_room1', 'is_volume_muted') %}
                  false
                  {% else %}
                  true
                  {%-endif %}
Note that the val value of the slider is multiplied and divided by 100 when read and set, because LVGL only suppports integers for object values. By multiplying and dividing by 100, it becomes possible to set volume between 0 and 1 as required by Home Assistant.

Generic thermostat/climate~

screenshot

This example is a bit more complex in the aspect that it uses several objects put on top of each other, and grouped toghether using the parentid parameter. Special attention goes to an invisible tabview (exteding over the label dispaying the target temperarture) which allows for swiping between an on/off switch and dropdowns for setting the hvac and fan modes.

The target temperature can be set by dragging the arc handle, more precise +/- setting possible by short/long pressing the middle circle containing the current temperature (increasing/decreasing the value by the temperature step defined by the climate entity). Note that the min, max and val values of the arc and gauge are multiplied and divided by 10 when set and read, because LVGL only suppports integers for object values. By multiplying and dividing by 10, it becomes possible to set decimal values for climate temperature.

The number of the ticks on the gauge is determined from the min, max attributes of the configured climate, likewise the hvac_modes and fan_modes dropdowns. You can localise these using the if-else statements of the template in the configuration of the custom component.

The active area of the arc changes color based on the current hvac mode of the entity.
UI theme set to Hasp Light in plate's web interface.

Note that the tab swiping dots (p3b26) are also handled by the custom component. Don't forget update the service call in the configuration with your plate's MQTT node name, and the command parameters if you change the page of the objects.

relevant openHASP config: (screen size 240x320)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
{"page":3,"id":10,"obj":"obj","x":5,"y":35,"w":230,"h":250,"click":0}
{"page":3,"id":10,"obj":"obj","x":5,"y":35,"w":230,"h":250,"click":0}
{"page":3,"id":20,"obj":"arc","x":5,"y":37,"w":230,"h":230,"min":170,"max":300,"val":250,"border_side":0,"type":0,"rotation":0,"start_angle":135,"end_angle":45,"adjustable":"true","line_width":21,"line_width1":21,"line_color1":"#34bdeb","bg_opa":0,"pad_top2":5,"pad_bottom2":5,"pad_left2":5,"pad_right2":5,"pad_top":5,"pad_bottom":5,"pad_left":5,"pad_right":5}
{"page":3,"id":21,"obj":"gauge","x":28,"y":28,"w":175,"h":175,"parentid":20,"min":170,"max":300,"val":224,"format":1,"critical_value":301,"label_count":14,"line_count":27,"border_width":0,"pad_top":2,"pad_bottom":2,"pad_left":2,"pad_right":2,"value_str":"°C","value_ofs_y":55,"value_font":16,"bg_opa":0,"line_width2":3,"line_rounded2":1,"line_color":"#348feb","line_color1":"#348feb","scale_grad_color":"#eb4934","scale_grad_color1":"#eb4934","scale_end_color1":"#eb4934"}
{"page":3,"id":22,"obj":"obj","x":85,"y":85,"w":60,"h":60,"parentid":20,"click":0,"radius":30,"border_width":2,"border_opa":200}
{"page":3,"id":23,"obj":"label","x":80,"y":100,"w":70,"h":30,"parentid":20,"text":"22.4","text_font":24,"align":"center"}
{"page":3,"id":24,"obj":"obj","x":145,"y":245,"w":60,"h":30,"click":0,"radius":5}
{"page":3,"id":25,"obj":"label","x":145,"y":245,"w":60,"h":30,"text":"25","text_font":24,"align":"center"}
{"page":3,"id":26,"obj":"label","x":90,"y":220,"w":60,"h":30,"text":"#909090 \u2022# #000000 \u2022# #909090 \u2022#","text_font":24,"align":"center","text_color":"grey","border_width":0}
{"page":3,"id":30,"obj":"tabview","x":0,"y":235,"w":240,"h":80,"btn_pos":0,"bg_opa":0,"border_width":0,"radius":0}
{"page":3,"id":31,"obj":"tab","parentid":30}
{"page":3,"id":32,"obj":"tab","parentid":30}
{"page":3,"id":33,"obj":"tab","parentid":30}
{"page":3,"id":41,"obj":"switch","x":35,"y":10,"w":60,"h":30,"parentid":31,"radius":25,"radius2":25}
{"page":3,"id":42,"obj":"dropdown","x":15,"y":10,"w":110,"h":30,"parentid":32,"options":"fan_modes","direction":"1","radius":5}
{"page":3,"id":43,"obj":"dropdown","x":15,"y":10,"w":110,"h":30,"parentid":33,"options":"hvac_modes","direction":"1","radius":5}

relevant openHASP-custom-component config:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
      - obj: "p3b20"  # arc slider
        properties:
          "val": "{{ state_attr('climate.thermostat_1','temperature') * 10 | int if not (is_state('climate.thermostat_1','unavailable')) }}"
          "min": "{{ state_attr('climate.thermostat_1','min_temp') * 10 | int if not (is_state('climate.thermostat_1','unavailable')) }}"
          "max": "{{ state_attr('climate.thermostat_1','max_temp') * 10 | int if not (is_state('climate.thermostat_1','unavailable')) }}"
          "line_color1": >
            {% if is_state('climate.thermostat_1', 'cool') %}
            {{ "#346beb" }}
            {%-elif is_state('climate.thermostat_1', 'heat_cool') %}
            {{ "#34bdeb" }}
            {%-elif is_state('climate.thermostat_1', 'heat') %}
            {{ "#eb3434" }}
            {%-elif is_state('climate.thermostat_1', 'dry') %}
            {{ "#ebeb34" }}
            {%-elif is_state('climate.thermostat_1', 'fan_only') %}
            {{ "#34eb77" }}
            {%-else %}
            {{ "#9f96b0" }}
            {% endif %}
        event:
          "changed":
            - service: climate.set_temperature
              target:
                entity_id: climate.thermostat_1
              data:
                temperature: "{{ val | int / 10 }}"
          "up":
            - service: climate.set_temperature
              target:
                entity_id: climate.thermostat_1
              data:
                temperature: "{{ val | int / 10 }}"

      - obj: "p3b21"  # gauge current temp
        properties:
          "val": "{{ state_attr('climate.thermostat_1','current_temperature') * 10 | int if not (is_state('climate.thermostat_1','unavailable')) }}"
          "min": "{{ state_attr('climate.thermostat_1','min_temp') * 10 | int if not (is_state('climate.thermostat_1','unavailable')) }}"
          "max": "{{ state_attr('climate.thermostat_1','max_temp') * 10 | int if not (is_state('climate.thermostat_1','unavailable')) }}"
          "critical_value": "{{ (state_attr('climate.thermostat_1','max_temp') * 10 | int + 1) if not (is_state('climate.thermostat_1','unavailable')) }}"
          "label_count": "{{ (state_attr('climate.thermostat_1','max_temp') | int - state_attr('climate.thermostat_1','min_temp') | int + 1) if not (is_state('climate.thermostat_1','unavailable')) }}"
          "line_count": "{{ ((state_attr('climate.thermostat_1','max_temp') | int - state_attr('climate.thermostat_1','min_temp') | int) * 2 + 1) if not (is_state('climate.thermostat_1','unavailable')) }}"

      - obj: "p3b23"  # label current temp (and +/- with short/long touch)
        properties:
          "text": "{{ state_attr('climate.thermostat_1','current_temperature') if not (is_state('climate.thermostat_1','unavailable')) }}"
        event:
          "up":
            - service: climate.set_temperature
              target:
                entity_id: climate.thermostat_1
              data:
                temperature: "{{ state_attr('climate.thermostat_1','temperature') + state_attr('climate.thermostat_1','target_temp_step') | float(default=0)}}"
          "long":
            - service: climate.set_temperature
              target:
                entity_id: climate.thermostat_1
              data:
                temperature: "{{ state_attr('climate.thermostat_1','temperature') - state_attr('climate.thermostat_1','target_temp_step') | float(default=0)}}"


      - obj: "p3b25"  # label target temp
        properties:
          "text": "{{ state_attr('climate.thermostat_1','temperature') if not (is_state('climate.thermostat_1','unavailable')) }}"


      - obj: "p3b41"  # on/off switch
        properties:
          "val": "{{ 0 if (is_state('climate.thermostat_1', 'off') or is_state('climate.thermostat_1', 'unavailable')) else 1 }}"
        event:
          "down":
            - service_template: >
                {% if val == 0 -%}
                climate.turn_on
                {% else -%}
                climate.turn_off
                {% endif -%}
              entity_id: "climate.thermostat_1"

      - obj: "p3b30"  # tab dots
        event:
          "changed":
            - service: openhasp.command
              target:
                entity_id: openhasp.your_plate
              data:
                keyword: p3b26.text
                parameters: >
                  {% if val == 0 %}
                  {{ "#000000 \u2022# #909090 \u2022# #909090 \u2022#" | e }}
                  {%-elif val == 1 %}
                  {{ "#909090 \u2022# #000000 \u2022# #909090 \u2022#" | e }}
                  {%-elif val == 2 %}
                  {{ "#909090 \u2022# #909090 \u2022# #000000 \u2022#" | e }}
                  {% endif %}

      - obj: "p3b42"  # dropdown with fan_modes
        properties:
          "options": >
            {% if not (is_state('climate.thermostat_1','unavailable')) %}{%for mode in state_attr('climate.thermostat_1','fan_modes')%}
            {%- if mode == 'auto' -%}
            Automatic{{"\n"|e}}
            {%- elif mode == 'low' -%}
            Low{{"\n"|e}}
            {%- elif mode == 'medium' -%}
            Medium{{"\n"|e}}
            {%- elif mode == 'high' -%}
            High{{"\n"|e}}
            {%- elif mode == 'turbo' -%}
            Turbo{{"\n"|e}}
            {%- endif -%}
            {%-if not loop.last%}{%-endif%}{%-endfor%}{% endif %}
          "val": >
            {% if not (is_state('climate.thermostat_1','unavailable')) %}{%for mode in state_attr('climate.thermostat_1','fan_modes')%}
            {{loop.index -1 if mode == state_attr('climate.thermostat_1','fan_mode') }}
            {%-endfor%}{% endif %}
        event:
          "changed":
            - service: climate.set_fan_mode
              target:
                entity_id: climate.thermostat_1
              data:
                fan_mode: >
                  {% if text == "Automatic" -%}
                  auto
                  {% elif text == 'Low' -%}
                  low
                  {% elif text == 'Medium' -%}
                  medium
                  {% elif text == 'High' -%}
                  high
                  {% elif text == 'Turbo' -%}
                  turbo
                  {% endif -%}

      - obj: "p3b43"  # dropdown with hvac_modes
        properties:
          "options": >
            {% if not (is_state('climate.thermostat_1','unavailable')) %}{%for mode in state_attr('climate.thermostat_1','hvac_modes')%}
            {%- if mode == 'off' -%}
            Off{{"\n"|e}}
            {%- elif mode == 'heat' -%}
            Heating{{"\n"|e}}
            {%- elif mode == 'cool' -%}
            Cooling{{"\n"|e}}
            {%- elif mode == 'heat_cool' -%}
            Heat/Cool{{"\n"|e}}
            {%- elif mode == 'dry' -%}
            Drying{{"\n"|e}}
            {%- elif mode == 'fan_only' -%}
            Fan only{{"\n"|e}}
            {%- else -%}
            On{{"\n"|e}}
            {%- endif -%}
            {%-if not loop.last%}{%-endif%}{%-endfor%}{% endif %}
          "val": >
            {% if not (is_state('climate.thermostat_1','unavailable')) %}{%for mode in state_attr('climate.thermostat_1','hvac_modes')%}
            {{loop.index -1 if mode == states('climate.thermostat_1') }}
            {%-endfor%}{% endif %}
        event:
          "changed":
            - service: climate.set_hvac_mode
              target:
                entity_id: climate.thermostat_1
              data:
                hvac_mode: >
                  {% if text == "Off" -%}
                  off
                  {% elif text == 'Heating' -%}
                  heat
                  {% elif text == 'Cooling' -%}
                  cool
                  {% elif text == 'Heat/Cool' -%}
                  heat_cool
                  {% elif text == 'Drying' -%}
                  dry
                  {% elif text == 'Fan only' -%}
                  fan_only
                  {% endif -%}

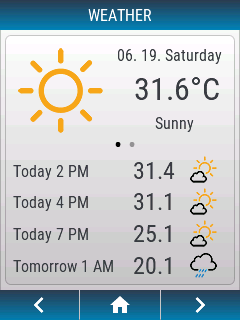

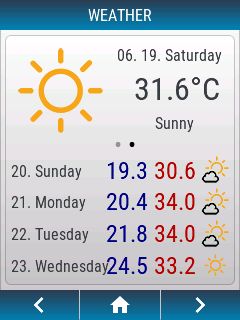

Current weather and forecasts~

screenshot screenshot

This example implements two weather forecast screens which located on the same page, can be swiped left and right. On the top area the current weather is shown, on the bottom area the user can choose by swiping between next hours and next days forecast. This is achieved by a tabview object with invisible tabs.

Since there's no weather integration in Home Assistant which can offer so much information at once, this can be achieved by installing multiple weather components. In our example we use two:

  • Met.no (the one coming by default pre-installed) for next days forecast.
  • OpenWeatherMap (available as standard integration to be activated) for next hours forecast. You need to set the forecast mode to onecall_hourly to get forecasts for the day's next hours.

The openHASP component grabs information from both weather sources and updates them on every change.
The various strings containing day names, day periods, weather conditions can be localized easily to any language within the configuration.

Weather condition icons are displayed from the internal flash space of the plate. For this, you need to upload the desired icon pack to the plate:

To unzip them on the plate, connect via Telnet and run the command unzip /openhasp-weathericons-day.zip to unzip the light theme above (alternatively you can unzip them on your computer and upload them one by one). The configuration example only shows how to use the light theme icons.

Icons are copyright from manifestinteractive and merlinthered.

This example implements Home Assistant's standard weather conditions only (as in 2021.06), so any weather integration component can be used. Some integrations know extra conditions in addition to the standard ones, those (with their corresponding icons) can be easily added to the component configuration below.

Note that the tab swiping dots (p5b10) are also handled by the custom component. Don't forget update the service call in the configuration with your plate's MQTT node name, and the command parameters if you change the page of the objects.

relevant openHASP config: (screen size 240x320, UI Theme: Hasp Light)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
{"page":5,"id":1,"obj":"btn","x":0,"y":0,"w":240,"h":30,"text":"WEATHER","text_font":16,"bg_color":"#2C3E50","text_color":"#FFFFFF","radius":0,"border_side":0,"click":0}
{"page":5,"id":2,"obj":"obj","x":5,"y":35,"w":230,"h":250,"click":0}

{"page":5,"id":14,"obj":"img","src":"/littlefs/openhasp_dummy_img.png","parentid":2,"auto_size":1,"w":128,"offset_x":-6,"offset_y":-10}

{"page":5,"id":15,"obj":"label","x":100,"y":10,"w":130,"h":25,"align":"center","text":"date current","parentid":2}
{"page":5,"id":16,"obj":"label","x":125,"y":34,"w":95,"h":40,"align":"center","text":"00.0°C","parentid":2,"text_font":32}
{"page":5,"id":17,"obj":"label","x":110,"y":78,"w":120,"h":25,"align":"center","text":"condition","parentid":2}
{"page":5,"id":19,"obj":"label","x":90,"y":95,"w":60,"h":30,"text":"#000000 \u2022# #909090 \u2022#","parentid":2,"text_font":24,"align":"center","text_color":"grey"}

{"page":5,"id":10,"obj":"tabview","x":0,"y":0,"w":240,"h":260,"parentid":2,"btn_pos":0,"bg_opa":0,"border_width":0}
{"page":5,"id":11,"obj":"tab","parentid":10}
{"page":5,"id":12,"obj":"tab","parentid":10}

{"page":5,"id":21,"obj":"label","x":8,"y":123,"w":130,"h":22,"align":"left","text":"hour+2","parentid":11,"pad_top":3,"click":0}
{"page":5,"id":22,"obj":"label","x":124,"y":123,"w":50,"h":22,"align":"center","text":"00.0","parentid":11,"pad_top":-2,"text_font":24,"click":0}
{"page":5,"id":23,"obj":"img","x":182,"y":118,"w":32,"h":32,"src":"/littlefs/openhasp_dummy_img.png","parentid":11,"click":0}

{"page":5,"id":31,"obj":"label","x":8,"y":154,"w":130,"h":22,"align":"left","text":"hour+3","parentid":11,"pad_top":3,"click":0}
{"page":5,"id":32,"obj":"label","x":124,"y":154,"w":50,"h":22,"align":"center","text":"00.0","parentid":11,"pad_top":-2,"text_font":24,"click":0}
{"page":5,"id":33,"obj":"img","x":182,"y":150,"w":32,"h":32,"src":"/littlefs/openhasp_dummy_img.png","parentid":11,"click":0}

{"page":5,"id":41,"obj":"label","x":8,"y":186,"w":130,"h":22,"align":"left","text":"hour+4","parentid":11,"pad_top":3,"click":0}
{"page":5,"id":42,"obj":"label","x":124,"y":186,"w":50,"h":22,"align":"center","text":"00.0","parentid":11,"pad_top":-2,"text_font":24,"click":0}
{"page":5,"id":43,"obj":"img","x":182,"y":182,"w":32,"h":32,"src":"/littlefs/openhasp_dummy_img.png","parentid":11,"click":0}

{"page":5,"id":51,"obj":"label","x":8,"y":218,"w":130,"h":22,"align":"left","text":"hour+5","parentid":11,"pad_top":3,"click":0}
{"page":5,"id":52,"obj":"label","x":124,"y":218,"w":50,"h":22,"align":"center","text":"00.0","parentid":11,"pad_top":-2,"text_font":24,"click":0}
{"page":5,"id":53,"obj":"img","x":182,"y":214,"w":32,"h":32,"src":"/littlefs/openhasp_dummy_img.png","parentid":11,"click":0}

{"page":5,"id":61,"obj":"label","x":6,"y":123,"w":100,"h":22,"align":"left","text":"date+1","parentid":12,"pad_top":3,"click":0}
{"page":5,"id":62,"obj":"label","x":102,"y":123,"w":40,"h":22,"align":"center","text":"00.0","parentid":12,"pad_top":-2,"text_font":24,"text_color":"Navy","click":0}
{"page":5,"id":63,"obj":"label","x":150,"y":123,"w":40,"h":22,"align":"center","text":"00.0","parentid":12,"pad_top":-2,"text_font":24,"text_color":"Blush","click":0}
{"page":5,"id":64,"obj":"img","x":194,"y":118,"w":32,"h":32,"src":"/littlefs/openhasp_dummy_img.png","parentid":12,"click":0}

{"page":5,"id":71,"obj":"label","x":6,"y":154,"w":100,"h":22,"align":"left","text":"date+2","parentid":12,"pad_top":3,"click":0}
{"page":5,"id":72,"obj":"label","x":102,"y":154,"w":40,"h":22,"align":"center","text":"00.0","parentid":12,"pad_top":-2,"text_font":24,"text_color":"Navy","click":0}
{"page":5,"id":73,"obj":"label","x":150,"y":154,"w":40,"h":22,"align":"center","text":"00.0","parentid":12,"pad_top":-2,"text_font":24,"text_color":"Blush","click":0}
{"page":5,"id":74,"obj":"img","x":194,"y":150,"w":32,"h":32,"src":"/littlefs/openhasp_dummy_img.png","parentid":12,"click":0}

{"page":5,"id":81,"obj":"label","x":6,"y":186,"w":100,"h":22,"align":"left","text":"date+3","parentid":12,"pad_top":3,"click":0}
{"page":5,"id":82,"obj":"label","x":102,"y":186,"w":40,"h":22,"align":"center","text":"00.0","parentid":12,"pad_top":-2,"text_font":24,"text_color":"Navy","click":0}
{"page":5,"id":83,"obj":"label","x":150,"y":186,"w":40,"h":22,"align":"center","text":"00.0","parentid":12,"pad_top":-2,"text_font":24,"text_color":"Blush","click":0}
{"page":5,"id":84,"obj":"img","x":194,"y":182,"w":32,"h":32,"src":"/littlefs/openhasp_dummy_img.png","parentid":12,"click":0}

{"page":5,"id":91,"obj":"label","x":6,"y":218,"w":100,"h":22,"align":"left","text":"date+4","parentid":12,"pad_top":3,"click":0}
{"page":5,"id":92,"obj":"label","x":102,"y":218,"w":40,"h":22,"align":"center","text":"00.0","parentid":12,"pad_top":-2,"text_font":24,"text_color":"Navy","click":0}
{"page":5,"id":93,"obj":"label","x":150,"y":218,"w":40,"h":22,"align":"center","text":"00.0","parentid":12,"pad_top":-2,"text_font":24,"text_color":"Blush","click":0}
{"page":5,"id":94,"obj":"img","x":194,"y":214,"w":32,"h":32,"src":"/littlefs/openhasp_dummy_img.png","parentid":12,"click":0}

relevant openHASP-custom-component config:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
      - obj: "p5b14" # Icon
        properties:
          "src": "{{ '/littlefs/w-128-' + states('weather.openweathermap') + '.png' if not is_state('weather.openweathermap','unavailable') }}"

      - obj: "p5b15" # Current date (adjust format to your needs)
        properties:
          "text": >
            {%- set day = (states.weather.openweathermap.last_changed).strftime('%w') %}
            {%- set days = ["Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday", "Sunday"] %}
            {{- days[ day | int -1 ] }} {{ (states.weather.openweathermap.last_changed).strftime('%m. %d. ') }}

      - obj: "p5b16" # Current temp (you can use your own outdoor temp sensor if you have one)
        properties:
          "text": "{{ state_attr('weather.openweathermap','temperature') |string + '°C' if not is_state('weather.openweathermap','unavailable') }}"  # or "{{ states('sensor.your_own_temp_sensor') }}°C"

      - obj: "p5b17" # Current weather condition
        properties:
          "text": >
             {% if states('weather.openweathermap') == "clear-night" -%}
             Clear night
             {% elif states('weather.openweathermap') == 'cloudy' -%}
             Cloudy
             {% elif states('weather.openweathermap') == 'fog' -%}
             Fog
             {% elif states('weather.openweathermap') == 'hail' -%}
             Hail
             {% elif states('weather.openweathermap') == 'lightning' -%}
             Lightning
             {% elif states('weather.openweathermap') == 'lightning-rainy' -%}
             Thunderstorms
             {% elif states('weather.openweathermap') == 'partlycloudy' -%}
             Partly cloudy
             {% elif states('weather.openweathermap') == 'pouring' -%}
             Pouring rain
             {% elif states('weather.openweathermap') == 'rainy' -%}
             Rainy
             {% elif states('weather.openweathermap') == 'snowy' -%}
             Snowy
             {% elif states('weather.openweathermap') == 'snowy-rainy' -%}
             Snowy-rainy
             {% elif states('weather.openweathermap') == 'sunny' -%}
             Sunny
             {% elif states('weather.openweathermap') == 'windy' -%}
             Windy
             {% elif states('weather.openweathermap') == 'windy-variant' -%}
             Windy
             {% elif states('weather.openweathermap') == 'exceptional' -%}
             Exceptional
             {% elif states('weather.openweathermap') == 'unavailable' -%}
             (not available)
             {% else -%}
             {{ states('weather.openweathermap') }}
             {% endif -%}

      - obj: "p5b10"  # tab dots
        event:
          "changed":
            - service: openhasp.command
              target:
                entity_id: openhasp.your_plate
              data:
                keyword: p8b19.text
                parameters: >
                  {% if val == 0 %}
                  {{ "#000000 \u2022# #909090 \u2022#" | e }}
                  {%-elif val == 1 %}
                  {{ "#909090 \u2022# #000000 \u2022#" | e }}
                  {% endif %}

      - obj: "p5b21" # Forecast time +1h
        properties:
          "text": >
            {%- set update = states('sensor.date') %}
            {%- set midnight = now().replace(hour=0, minute=0, second=0, microsecond=0).timestamp() %}
            {%- set event = as_timestamp(strptime(state_attr('weather.openweathermap','forecast')[1]['datetime'], '%Y-%m-%dT%H:%M:%S%z', default='2020-01-00T00:00:00+00:00')) %}
            {%- set delta = ((event - midnight) // 86400) | int %}
            {%- if delta == 0 %}
            Today
            {%- elif delta == 1 %}
            Tomorrow
            {%- endif %}
            {{- event | timestamp_custom(" %-I %p") }}

      - obj: "p5b22" # Forecast temp +1h
        properties:
          "text": "{{ state_attr('weather.openweathermap','forecast')[1]['temperature'] }}"

      - obj: "p5b23" # Forecast condition +1h
        properties:
          "src": "/littlefs/w-32-{{ state_attr('weather.openweathermap','forecast')[1]['condition'] }}.png"

      - obj: "p5b31" # Forecast time +2h (using Dawn/Morn etc instead of Today/Tomorrow)
        properties:
          "text": >
            {%- set hour = as_timestamp(strptime(state_attr('weather.openweathermap','forecast')[3]['datetime'], '%Y-%m-%dT%H:%M:%S%z', default='2020-01-00T00:00:00+00:00')) | timestamp_custom("%-H") | int %}
            {%- if 4 <= hour < 6 %}
            Dawning
            {%- elif 6 <= hour < 9 %}
            Morning
            {%- elif 9 <= hour < 12 %}
            Forenoon
            {%- elif 12 <= hour < 18 %}
            Afternoon
            {%- elif 18 <= hour < 23 %}
            Evening
            {%- elif 23 <= hour or hour < 4 %}
            Night
            {%- endif %}
            {{- " " + hour |string + " o'clock" }}

      - obj: "p5b32" # Forecast temp +2h
        properties:
          "text": "{{ state_attr('weather.openweathermap','forecast')[3]['temperature'] }}"

      - obj: "p5b33" # Forecast condition +2h
        properties:
          "src": "/littlefs/w-32-{{ state_attr('weather.openweathermap','forecast')[3]['condition'] }}.png"

      - obj: "p5b41" # Forecast time +4h
        properties:
          "text": >
            {%- set update = states('sensor.date') %}
            {%- set midnight = now().replace(hour=0, minute=0, second=0, microsecond=0).timestamp() %}
            {%- set event = as_timestamp(strptime(state_attr('weather.openweathermap','forecast')[6]['datetime'], '%Y-%m-%dT%H:%M:%S%z', default='2020-01-00T00:00:00+00:00')) %}
            {%- set delta = ((event - midnight) // 86400) | int %}
            {%- if delta == 0 %}
            Today
            {%- elif delta == 1 %}
            Tomorrow
            {%- endif %}
            {{- event | timestamp_custom(" %-I %p") }}

      - obj: "p5b42" # Forecast temp +4h
        properties:
          "text": "{{ state_attr('weather.openweathermap','forecast')[6]['temperature'] }}"

      - obj: "p5b43" # Forecast condition +4h
        properties:
          "src": "/littlefs/w-32-{{ state_attr('weather.openweathermap','forecast')[6]['condition'] }}.png"

      - obj: "p5b51" # Forecast time +8h
        properties:
          "text": >
            {%- set update = states('sensor.date') %}
            {%- set midnight = now().replace(hour=0, minute=0, second=0, microsecond=0).timestamp() %}
            {%- set event = as_timestamp(strptime(state_attr('weather.openweathermap','forecast')[12]['datetime'], '%Y-%m-%dT%H:%M:%S%z', default='2020-01-00T00:00:00+00:00')) %}
            {%- set delta = ((event - midnight) // 86400) | int %}
            {%- if delta == 0 %}
            Today
            {%- elif delta == 1 %}
            Tomorrow
            {%- endif %}
            {{- event | timestamp_custom(" %-I %p") }}

      - obj: "p5b52" # Forecast temp +8h
        properties:
          "text": "{{ state_attr('weather.openweathermap','forecast')[12]['temperature'] }}"

      - obj: "p5b53" # Forecast condition +8h
        properties:
          "src": "/littlefs/w-32-{{ state_attr('weather.openweathermap','forecast')[12]['condition'] }}.png"

      - obj: "p5b61" # Forecast date +1d
        properties:
          "text": >
            {%- set now = as_timestamp(strptime(state_attr('weather.your_homename','forecast')[0]['datetime'], '%Y-%m-%dT%H:%M:%S%z', default='2020-01-00T00:00:00+00:00')) %}
            {%- set day = now | timestamp_custom("%w") %}
            {%- set days = ["Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday", "Sunday"] %}
            {{ days[ day | int -1 ] }}{{- now | timestamp_custom(" %d") }}

      - obj: "p5b62" # Forecast temp min +1d
        properties:
          "text": "{{ state_attr('weather.your_homename','forecast')[0]['templow'] }}"

      - obj: "p5b63" # Forecast temp max +1d
        properties:
          "text": "{{ state_attr('weather.your_homename','forecast')[0]['temperature'] }}"

      - obj: "p5b64" # Forecast condition +1d
        properties:
          "src": "/littlefs/w-32-{{ state_attr('weather.your_homename','forecast')[0]['condition'] }}.png"

      - obj: "p5b71" # Forecast date +2d
        properties:
          "text": >
            {%- set now = as_timestamp(strptime(state_attr('weather.your_homename','forecast')[1]['datetime'], '%Y-%m-%dT%H:%M:%S%z', default='2020-01-00T00:00:00+00:00')) %}
            {%- set day = now | timestamp_custom("%w") %}
            {%- set days = ["Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday", "Sunday"] %}
            {{ days[ day | int -1 ] }}{{- now | timestamp_custom(" %d") }}

      - obj: "p5b72" # Forecast temp min +2d
        properties:
          "text": "{{ state_attr('weather.your_homename','forecast')[1]['templow'] }}"

      - obj: "p5b73" # Forecast temp max +2d
        properties:
          "text": "{{ state_attr('weather.your_homename','forecast')[1]['temperature'] }}"

      - obj: "p5b74" # Forecast condition +2d
        properties:
          "src": "/littlefs/w-32-{{ state_attr('weather.your_homename','forecast')[1]['condition'] }}.png"

      - obj: "p5b81" # Forecast date +3d
        properties:
          "text": >
            {%- set now = as_timestamp(strptime(state_attr('weather.your_homename','forecast')[2]['datetime'], '%Y-%m-%dT%H:%M:%S%z', default='2020-01-00T00:00:00+00:00')) %}
            {%- set day = now | timestamp_custom("%w") %}
            {%- set days = ["Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday", "Sunday"] %}
            {{ days[ day | int -1 ] }}{{- now | timestamp_custom(" %d") }}

      - obj: "p5b82" # Forecast temp min +3d
        properties:
          "text": "{{ state_attr('weather.your_homename','forecast')[2]['templow'] }}"

      - obj: "p5b83" # Forecast temp max +3d
        properties:
          "text": "{{ state_attr('weather.your_homename','forecast')[2]['temperature'] }}"

      - obj: "p5b84" # Forecast condition +3d
        properties:
          "src": "/littlefs/w-32-{{ state_attr('weather.your_homename','forecast')[2]['condition'] }}.png"

      - obj: "p5b91" # Forecast date +4d
        properties:
          "text": >
            {%- set now = as_timestamp(strptime(state_attr('weather.your_homename','forecast')[3]['datetime'], '%Y-%m-%dT%H:%M:%S%z', default='2020-01-00T00:00:00+00:00')) %}
            {%- set day = now | timestamp_custom("%w") %}
            {%- set days = ["Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday", "Sunday"] %}
            {{ days[ day | int -1 ] }}{{- now | timestamp_custom(" %d") }}

      - obj: "p5b92" # Forecast temp min +4d
        properties:
          "text": "{{ state_attr('weather.your_homename','forecast')[3]['templow'] }}"

      - obj: "p5b93" # Forecast temp max +4d
        properties:
          "text": "{{ state_attr('weather.your_homename','forecast')[3]['temperature'] }}"

      - obj: "p5b94" # Forecast condition +4d
        properties:
          "src": "/littlefs/w-32-{{ state_attr('weather.your_homename','forecast')[3]['condition'] }}.png"
Last update: 2023-12-09
