ILI9341 IPS Panel

Display image

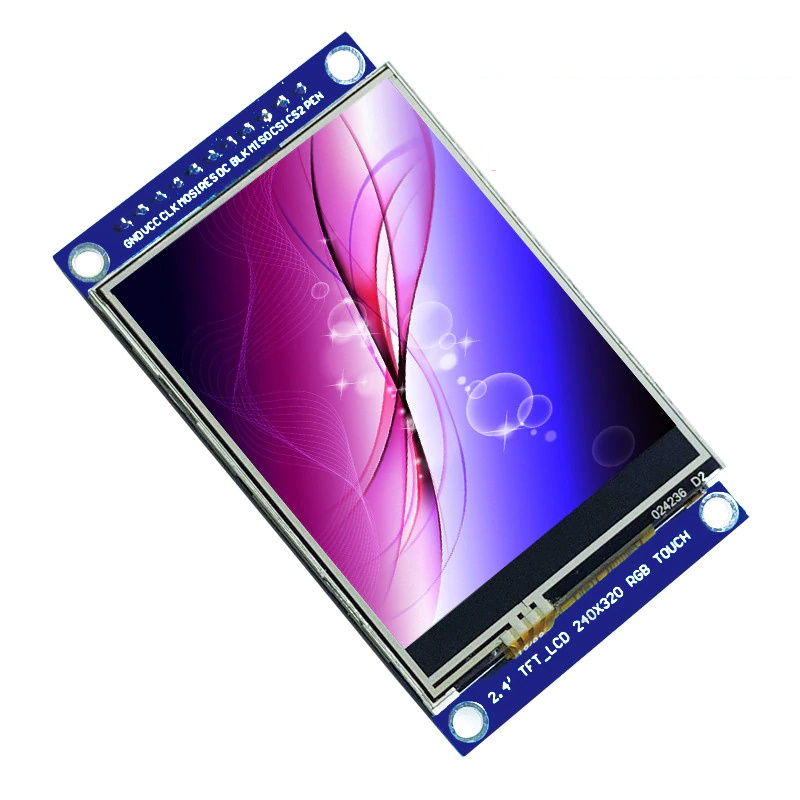

A 240x320 IPS TFT display with an ILI9341 controller and XPT2046 touch controller.

Improvement over TN versions of the display with amazing view angles.

Pin Configuration~

Pin Function ESP32 Pin Config Name Display Pin
1 Module Ground GND GND
2 Module Power 3.3v 3V3 VCC
3 SPI Clock GPIO18 TFT_SCLK CLK
4 Data Input GPIO23 TFT_MOSI MOSI
5 LCD Reset line GPIO15 TFT_RST RES
6 Data Command control GPIO5 TFT_DC DC
7 Backlight GPIO21 TFT_BCKL BLK
8 Data Output GPIO19 TFT_MISO MISO
9 Chip Select GPIO26 TFT_CS CS1
10 Touch Select GPIO17 TOUCH_CS CS2
11 Touch Interrupt

SPI MISO, MOSI and SCLK are shared between the touch controller and the LCD controller.

Custom build~

Define a custom environment in platformio_override.ini and add a new esp32_ili9341_spi entry under extra_default_envs =

If you've wired pins differently, change the values below.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
;-- ILI9341 SPI version ------------------------
[env:esp32_ili9341_spi]
platform = espressif32
platform_packages = framework-arduinoespressif32
framework = arduino
board = esp32dev
monitor_port = COM4
upload_port = ${env:esp32_ili9341_spi.monitor_port}
monitor_filters = esp32_exception_decoder
board_build.partitions = user_setups/esp32_partition_app1300k_spiffs1216k.csv

build_flags =
    ${env.build_flags}
    ${esp32.build_flags}
    -D ILI9341_DRIVER=1
    -D TFT_WIDTH=240
    -D TFT_HEIGHT=320
    -D TFT_ROTATION=0 ; see TFT_ROTATION values
    -D INVERT_COLORS=1  ; to fix colors
    -D SPI_FREQUENCY=60000000
    -D SPI_TOUCH_FREQUENCY=2500000
    -D SPI_READ_FREQUENCY=20000000
    -D USER_SETUP_LOADED=1
    -D TOUCH_DRIVER=2046     ; XPT2046 Resistive SPI touch panel driver
    -D SUPPORT_TRANSACTIONS
    ${esp32.vspi}        ; Use VSPI hardware SPI bus:
                         ; TFT_MISO=19 | TFT_MOSI=23 | TFT_SCLK=18
                         ; MISO    = 8 | MOSI    = 4 | CLK     = 3
; wiring recommendations, change pins according to your wiring
    -D TFT_DC=5          ; DC,  lcd pin 3
    -D TFT_RST=15        ; RES, lcd pin 5
    -D TFT_BCKL=-1       ; BLK, lcd pin 7 (configurable via web UI (e.g. 21))
    -D TFT_CS=26         ; CS1, lcd pin 9
    -D TOUCH_CS=17       ; CS2, lcd pin 10

lib_deps =
    ${env.lib_deps}
    ${esp32.lib_deps}

lib_ignore =
    ${env.lib_ignore}
    ${esp32.lib_ignore}

extra_scripts =
    ${env.extra_scripts}
    ${esp32.extra_scripts}
