Wireless-Tag WT32-SC01~
Features~

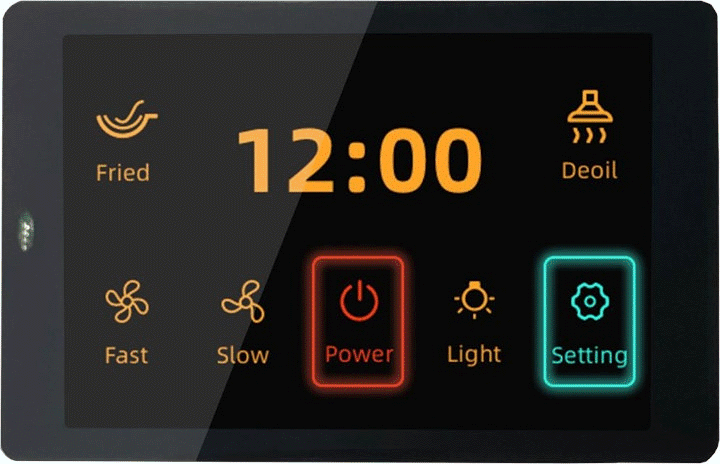

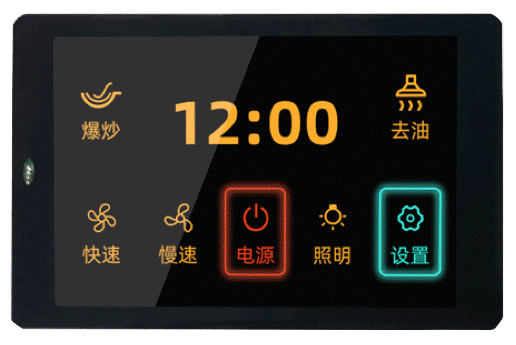

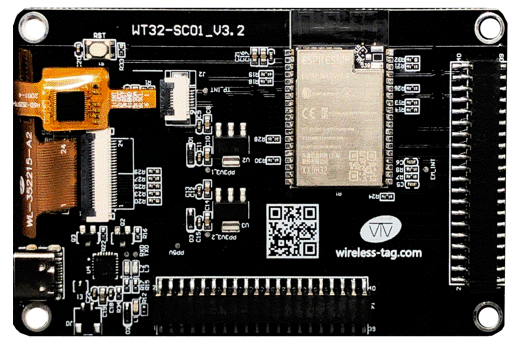

The WT32-SC01 incorporates an ESP32-WROVER-B module with a 3.5-inch capacitive touch display. openHASP can take advantage of the 320x480 resolution to show a large custom user-interface. On the back there is an expansion port with GPIOs so you can expand the capabilities as needed.
| Pros | Cons |
|---|---|
| 480x320 Display | 4 MB flash on basic model |
| 8 MB PSram | Viewing angle in landscape mode |
| Capacitive Touchscreen | Mounting holes placement |
The development board is powered via USB Type-C. The basic version comes with only 4MB SPI Flash but there is a better WT32-SC01(16MB) SKU with a larger flash chip. Both models have 8MB of PSRAM.
-
With 4MB flash available from: LCSC Seeed studio
-
With 16MB flash available from: Alibaba
Tip
Please consider getting the model with 16MB flash size as it is more suitable for the large screen.
Note
The expansion connector has a 2.0mm pitch female header instead of the more common 2.54mm pitch.
