Makerfabs ESP32 TFT Touch~
Features~

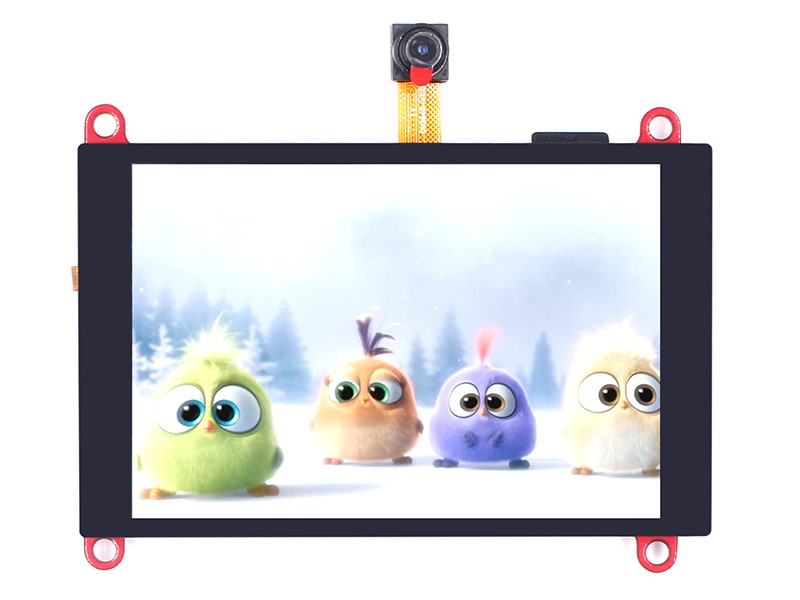

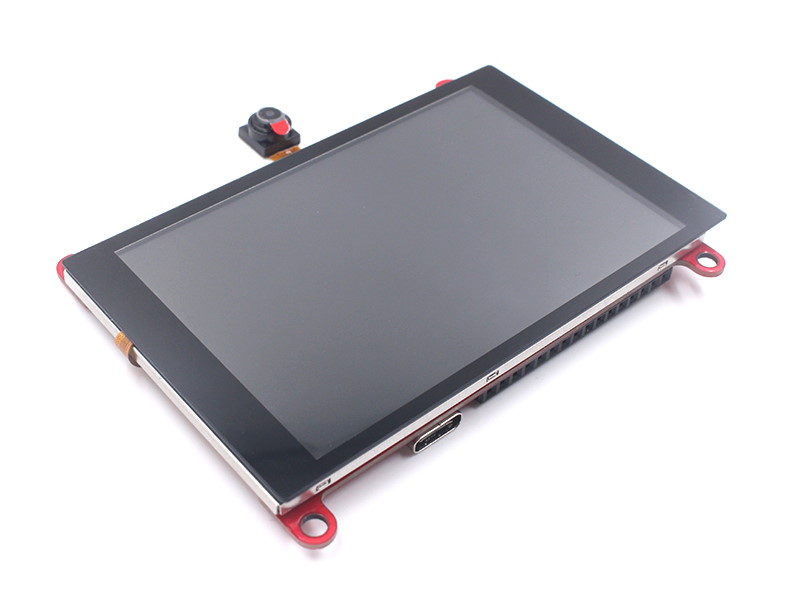

The Makerfabs ESP32 TFT Touch development board incorporates a 3.2” or 3.5” touch display, with a built-in 2M pixel OV2640 camera, which makes it a very suitable platform for any ESP32 project. There is a version with capacitive and resistive touch.

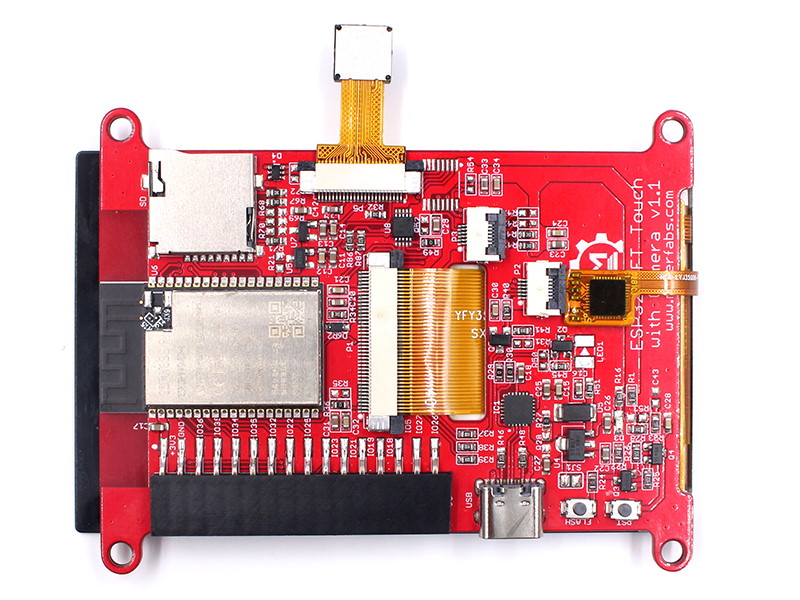

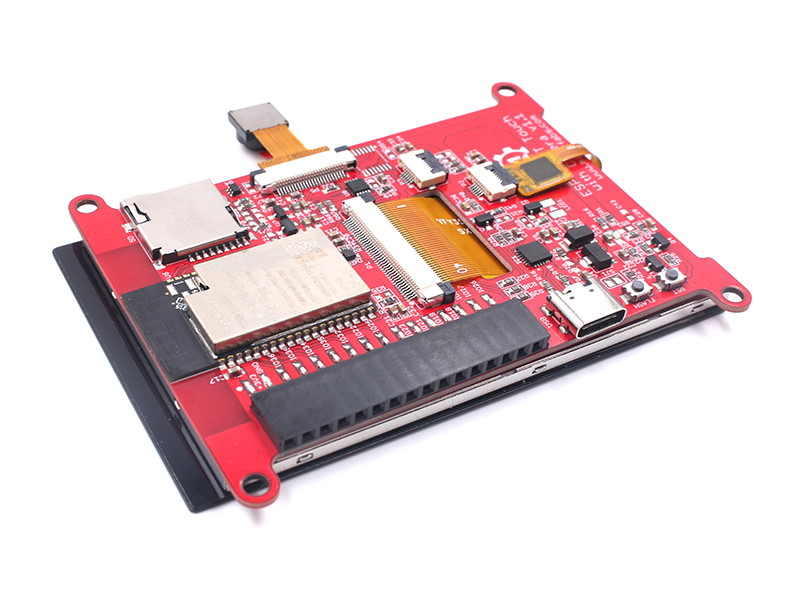

At the back sits an ESP32-WROVER module with 16MB of flash and 8MB of PSram. There is also an SD-card slot, USB-C connector and expansion port with 14 GPIOs.
Models~
| Model | 3.2" Resistive | 3.5" Resistive | 3.5" Capacitive |
|---|---|---|---|
| SKU | ESPTFT32CA | ESPTFT35RE | ESPTFT35CA |
| Flash | 16 MB | 16 MB | 16 MB |
| PSram | 8 MB | 8 MB | 8 MB |
| Resolution | 3.2" 320x240 | 3.5" 480x320 | 3.5" 480x320 |
| Touch Screen | Resistive | Resistive | Capacitive |
| OV2640 Camera | 2M pixel | 2M pixel | 2M pixel |
| SD Card |  yes |
yes |
yes |
| Screen dimming |  no |
no |
no |
| Buy | Buy | Buy |
Also available on Tindie
Tip

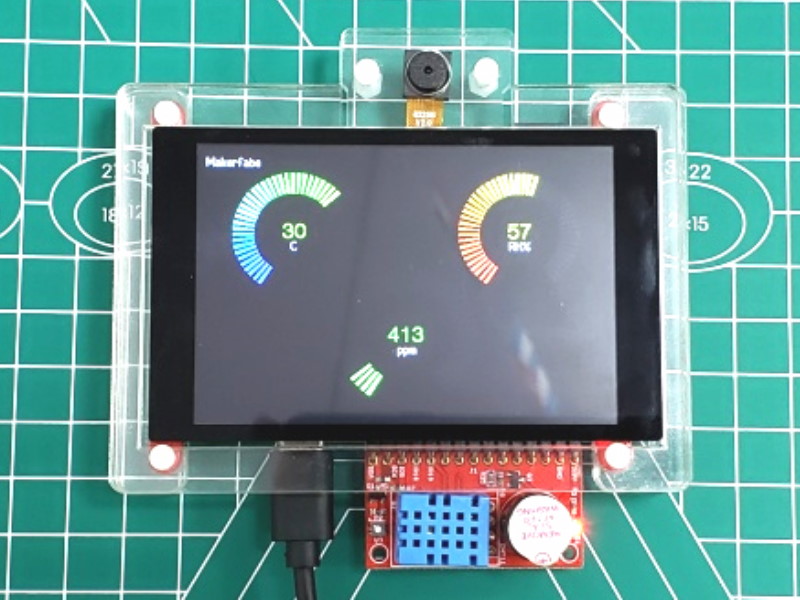

An optional environmental expansion board can be added to provide a temperature, humidity and air quality sensor. The camera can not be used at the same time as the expansion port.
The camera and SD card are not supported by openHASP 0.6.1.
Backlight Control~
Unfortunately, there is no support for backlight control. The display is always-on.
Video~
Documentation~
More information can be found in the Makerfabs Wiki and there are plenty of example projects available on the Github repository.
Makerfabs Wiki Github Repo Schematics
Acrylic Case~

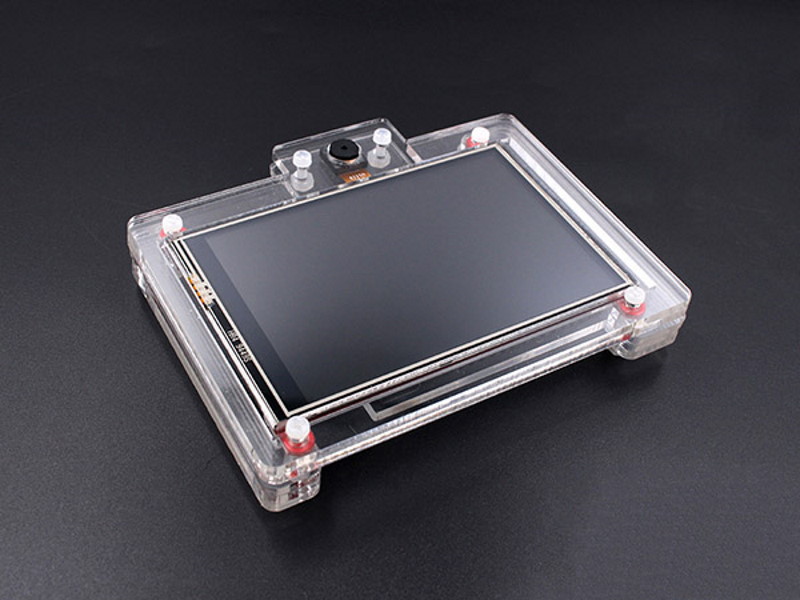

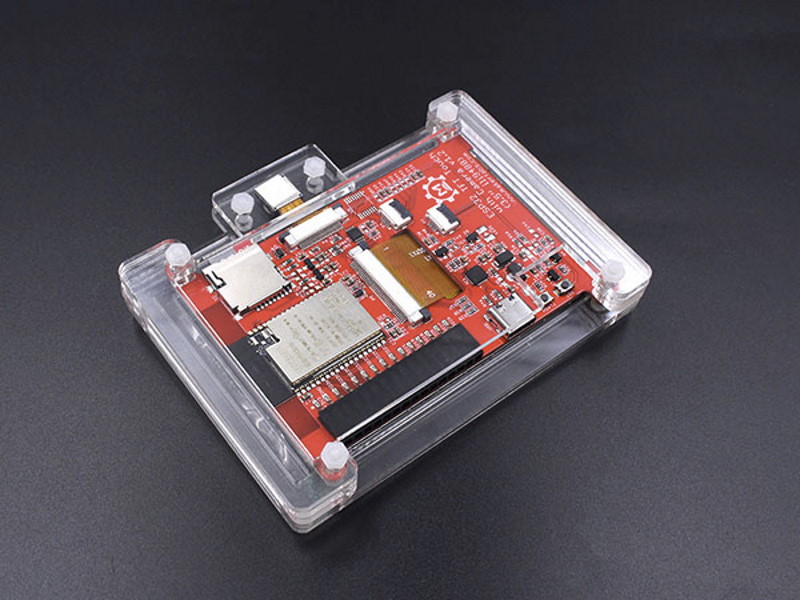

All 3 models have the option to add a protective acrylic case for only $2.90 extra:
