M5Stack core2~

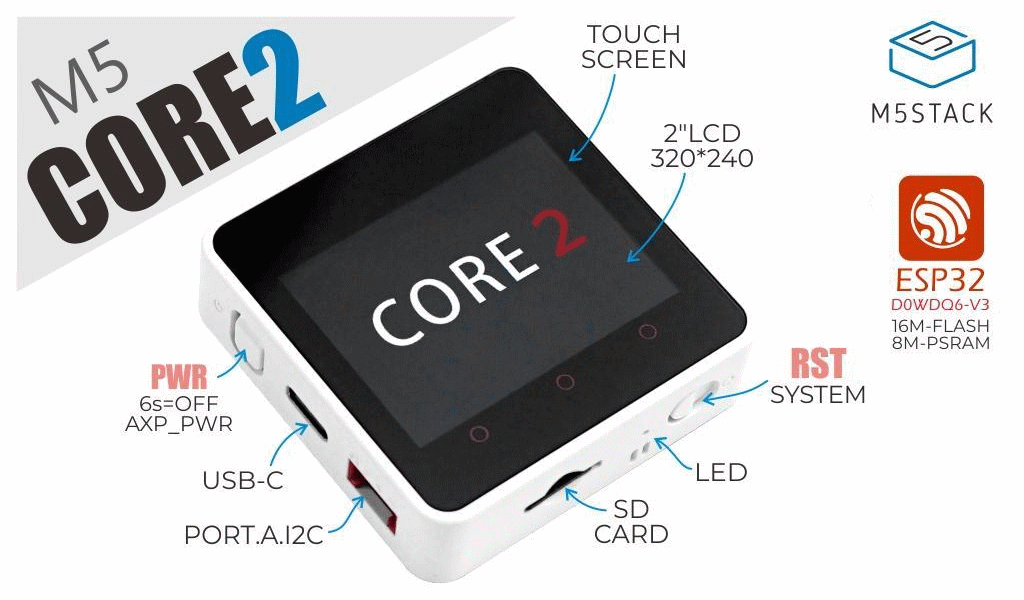

M5Stack core2 is the second generation core device in the M5Stack development kit series. The core2 features a 2" capacitive touchscreen, unlike its predecessor, making it very suitable to run openHASP. The device is packed with a beefy ESP32 model D0WDQ6-V3 and lots of sensors.
Features~
- 1W Speaker
- SPM1423 Microphone
- Vibration Motor
- 3.7V / 390 mAh battery with power management chip
- SD card slot (16 GB maximum size)
- IMU (3-axis gyroscope & 3-axis accelerometer)
Dimensions: 54 x 54 x 16mm
| Pros | Cons |
|---|---|
| 16 MB flash | Small display |
| 8 MB PSram | |
| Internal Battery | |
| Capacitive Touchscreen |
Available from:
Video~

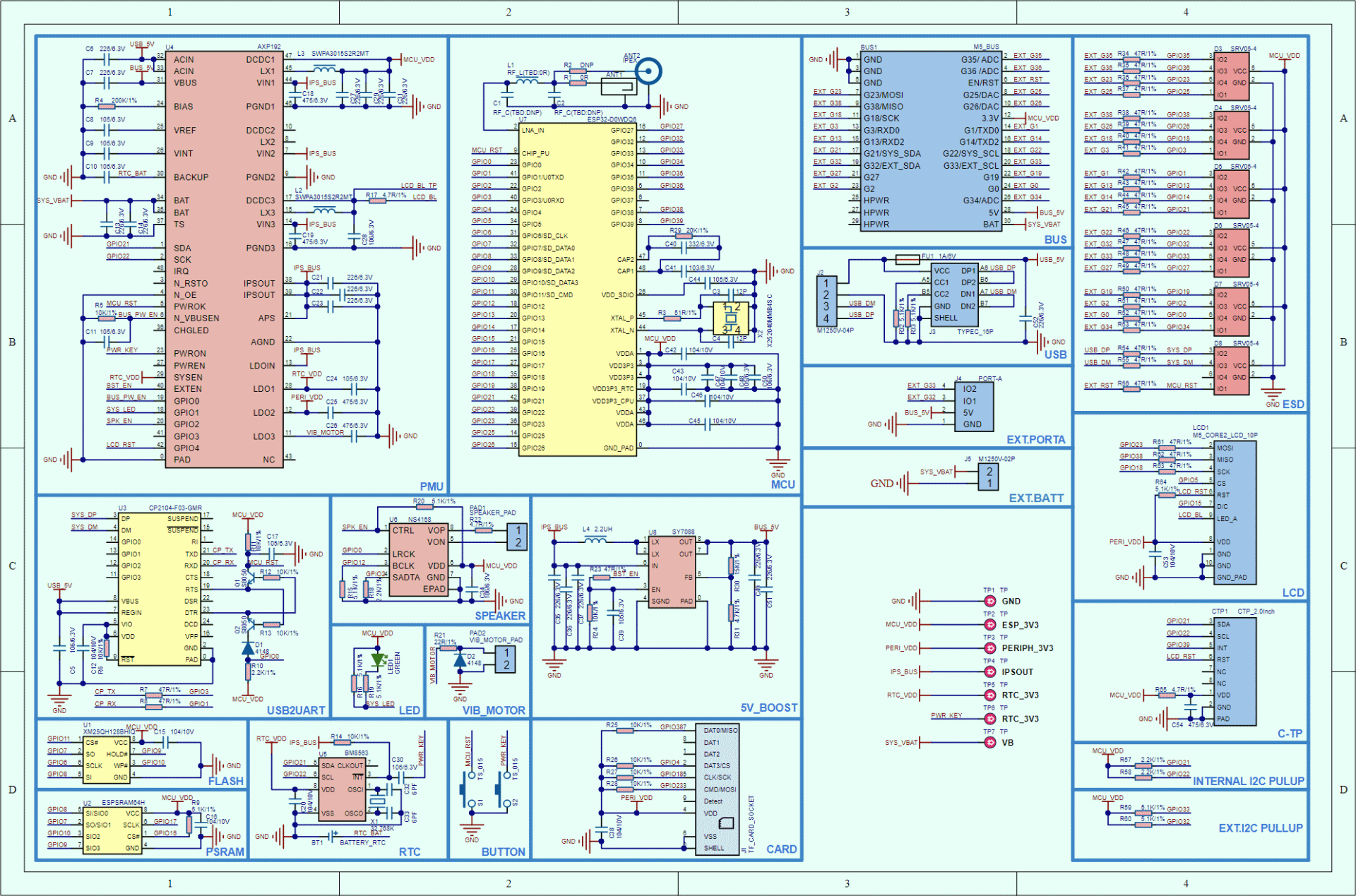

Schematic~
M5Stack Library~
The M5Stack series comes with an opensource library to give you a jump start in deveopment for this device, including a Getting Started guide, examples and API reference.
Visit the M5Stack Github repo.
