Lanbon L8~

Models~

L8-HS: 3 Relays - load up to 200W/gang
L8-HD: 1 Dimmer - load up to 200W/gang
L8-HB: Boiler switch - load up to 16A
L8-HT: Thermostat switch - not tested!

Form factor~

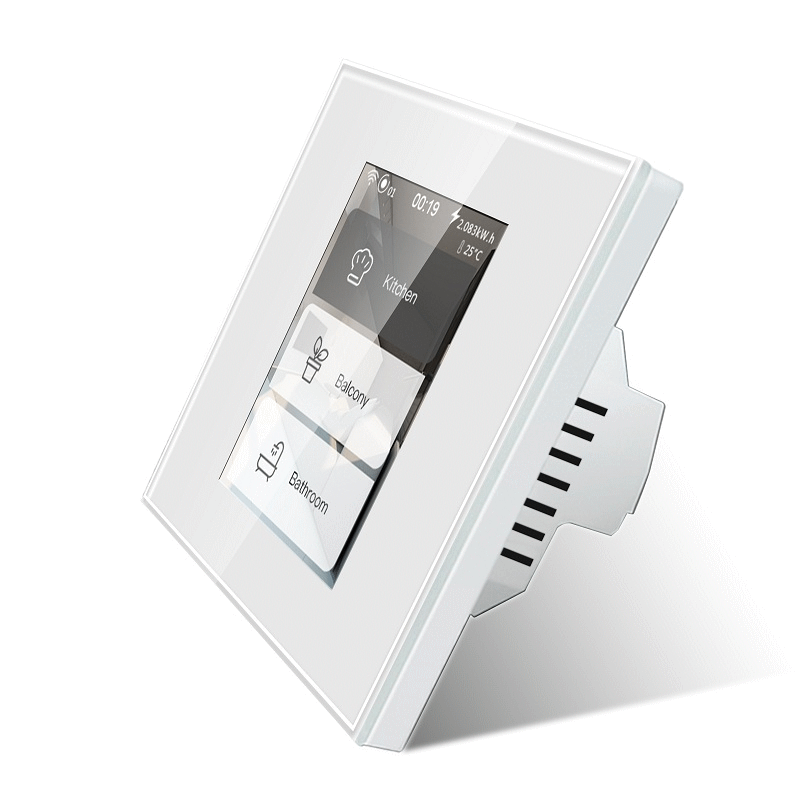

EU model: 86mm x 86mm

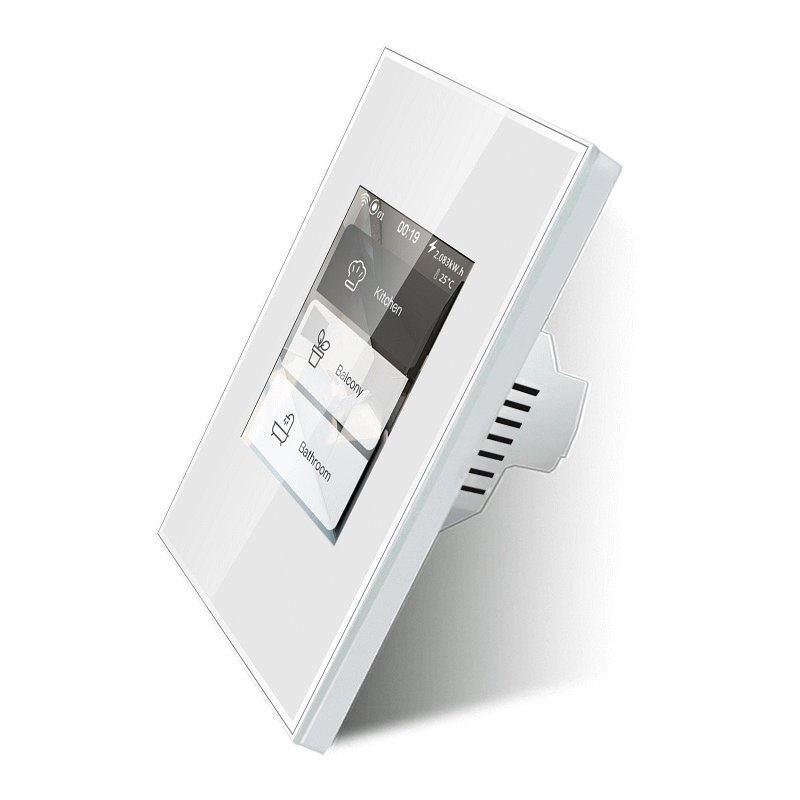

US model: 120mm x 74mm

Both models are rated at AC 100-250V ~50-60Hz, the form factor can be a design choice regardless of the continental area.

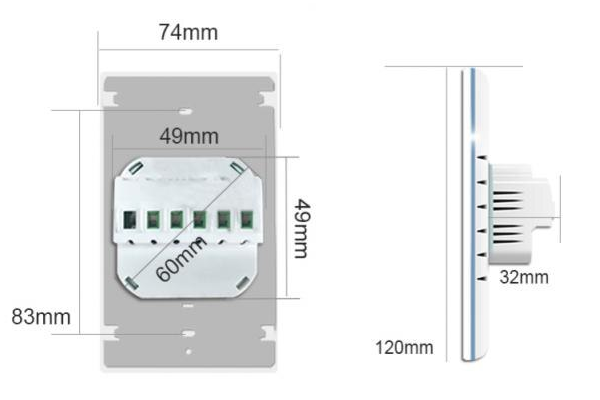

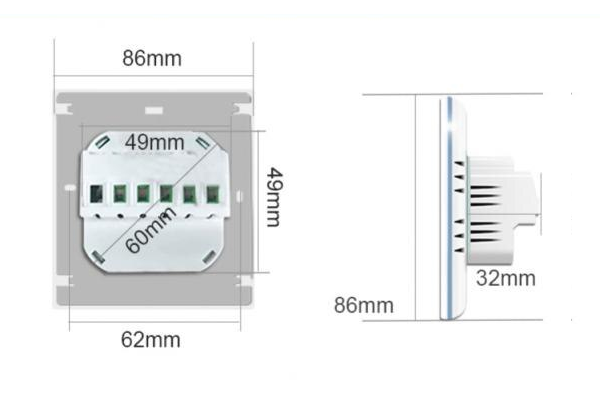

Both models have the same recessed housing sliding in the wall, sized 50x50mm, with rounded corners creating a diameter of about 59mm. This makes them suitable for both EU and US wall fixtures. The EU model fits in a properly deployed, standard 60mm round wall box and can be fixed with two side screws (use the screws which belong to the box instead of the ones shipped with the device), the US model fits in the standard rectangular box and can be fixed through the oval holes located 3 1/4" apart. The depth of the wall box has to be at least 35-40mm because some room is needed for the wires coming out straight of the device.

Bezel Color~

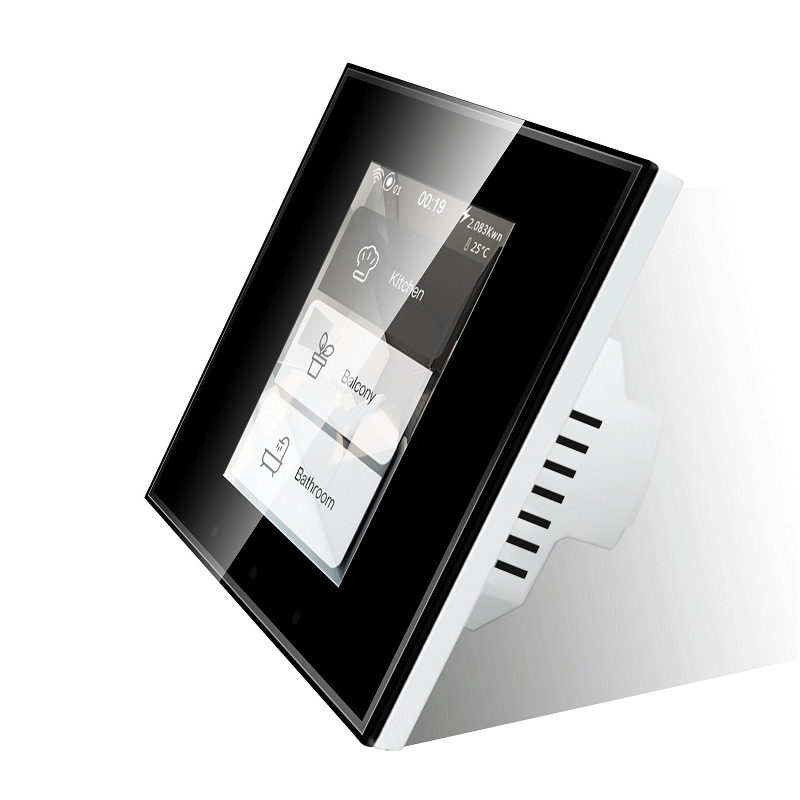

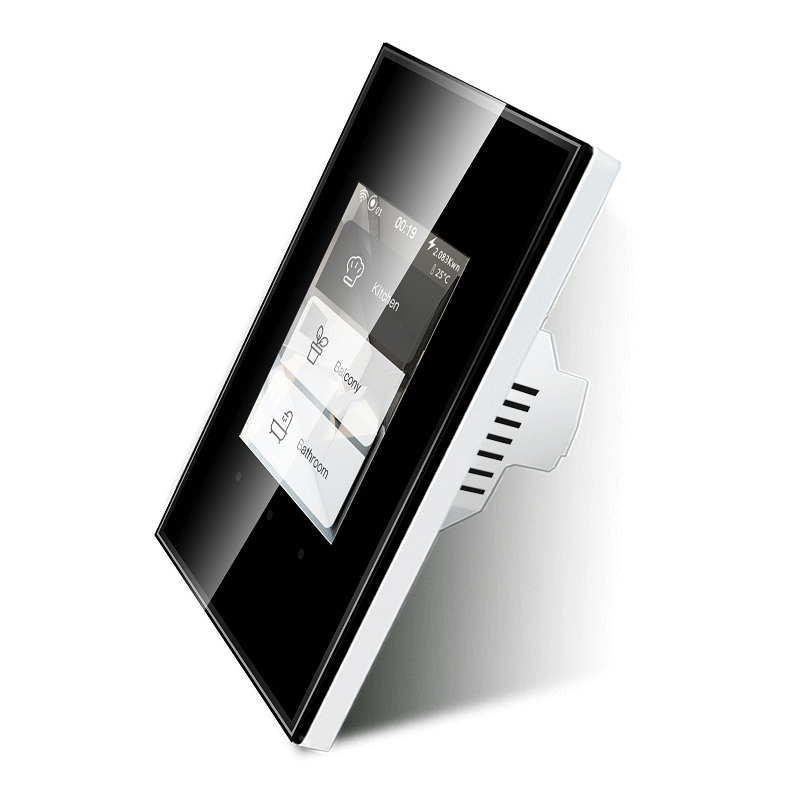

Black
White

Features:~

Input voltage 110-250V ~ 50-60Hz AC
ESP32-WROVER-B
Capacitive touch screen
Energy counter

Note

An earlier revision V1.14 (20191203) of the PCB had an analog temperature sensor onboard. It was removed from V1.15 (20200521) of the PCB. You are likely not to get it when buying a recent switch.

Pros	Cons
8 MB flash	Mood LEDS not uniform
8 MB PSram
Capactitive touch
Built-in PSU
Energy monitor
Standard wallmount form factor both EU and US

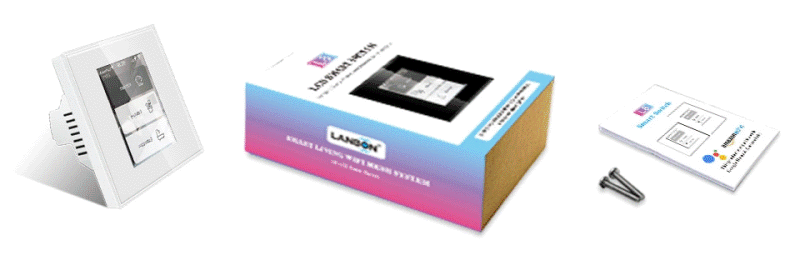

Contents~

Display image

Flashing~

Disclaimer

Never connect high-voltage when the panel is not properly secured in place.

Display image

You can follow this flashing guide on blakadder.com or this discussion post with instructions and photos to flash the firmware without having to open the device.

Steps:

Disengage the high-voltage power
Detach the panel from the PSU power supply

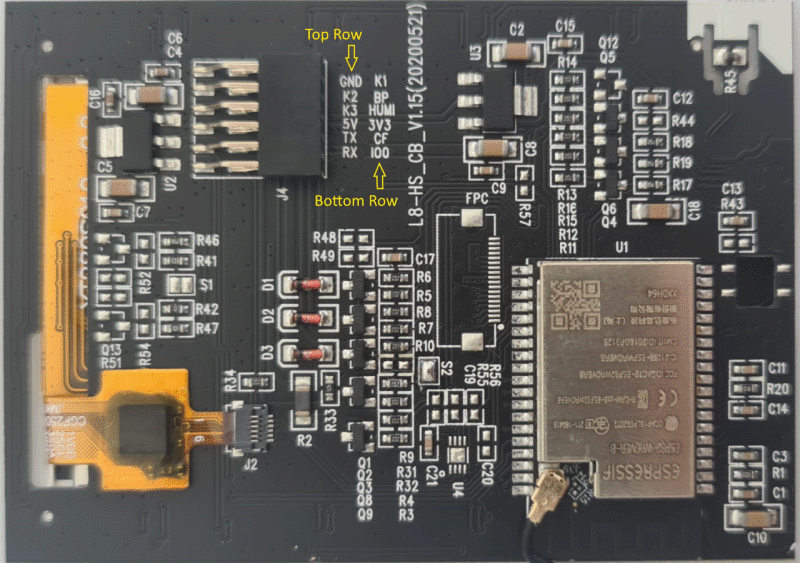

Connect RX, TX, IO0, GND and power pins to the female pinheader:
- Either supply 3.3V or 5V on the corresponding power pin, depending on the voltage supplied by the UART ttl (not both at the same time).
Because there is no RESET pin, you need to powercycle the board with IO0 connected to GND to activate flash mode

Once the serial connections are made, flash the Lanbon-L8 ESP32 binary like on any other device.

GPIO Settings~

3-gang version L8-HS~

Pin	Mode	L8-HS	Group	Default
12	Output	Relay (K3)	1	Low (Normal)
14	Output	Relay	2	Low (Normal)
26	Output	Mood Red	4	Low (Normal)
27	Output	Relay	3	Low (Normal)
32	Output	Mood Green	5	Low (Normal)
33	Output	Mood Blue	6	Low (Normal)

Tip

To configure the GPIOs as light switches at once for L8-HS send to topic hasp/<nodename>/config/gpio a message with payload:

{"config":[197658,263456,329249,655628,655886,656155,0,0]}

Or for power switches:

{"config":[721164,721422,197658,721691,263456,329249,0,0]}

The difference is only the device class you want them to be autodetected as in Home Assistant: light vs. switch

Example jsonl

To create a page displaying the local relays as switches, try this very simple pages.jsonl:

{"page":1,"id":1,"obj":"switch","x":30,"y":40,"w":180,"h":75,"radius":40,"radius2":40,"groupid":1}
{"page":1,"id":2,"obj":"switch","x":30,"y":122,"w":180,"h":75,"radius":40,"radius2":40,"groupid":2}
{"page":1,"id":3,"obj":"switch","x":30,"y":205,"w":180,"h":75,"radius":40,"radius2":40,"groupid":3}

Dimmer version L8-HD~

Pin	Mode	L8-HD	Group	Default
12	Output	Dimmer TX (K3)	1	Low (Normal)
26	Output	Mood Red	4	Low (Normal)
32	Output	Mood Green	5	Low (Normal)
33	Output	Mood Blue	6	Low (Normal)

Tip

To configure the GPIOs at once for L8-HD send to topic hasp/<nodename>/config a message with payload:

{"gpio":{"config":[3211532,197658,263456,329249,0,0,0,0]}}

Boiler version L8-HB~

Pin	Mode	L8-HB	Group	Default
26	Output	Mood Red	4	Low (Normal)
27	Output	Relay 16A (K1)	1	Low (Normal)
32	Output	Mood Green	5	Low (Normal)
33	Output	Mood Blue	6	Low (Normal)

Tip

To configure the GPIOs at once for L8-HB send to topic hasp/<nodename>/config a message with payload:

{"gpio":{"config":[197658,263456,329249,721179,14,27,0,0]}}

Note

You can build your own firmware with GPIOs and many other parameters pre-configured in user_config_override.h as factory defaults for Lanbon L8.

Wiring Diagrams~

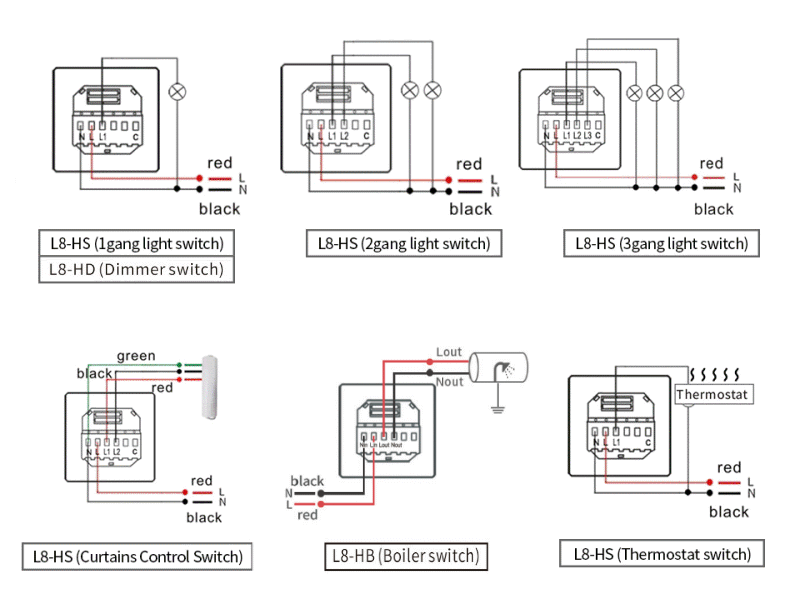

The switch supports several wiring configurations:

Display image

Warning

Always follow the instructions from the installation guide and local safety regulations. Consult a licensed electrician when changing your electrical wiring.

Product Video~

LCD Configuration~

The lcd_config.ini file specifies the different properties of the display, except for the actual pin configuration:

st7789v =
    -D ST7789_DRIVER=1
    ;-D CGRAM_OFFSET=1         ; Library will add offsets required
    -D TFT_SDA_READ            ; Read from display, it only provides an SDA pin
    -D TFT_WIDTH=240
    -D TFT_HEIGHT=320
    -D TFT_ROTATION=2          ; see TFT_ROTATION values
    ; -D TFT_INVERSION_OFF     ; for normal colors
    ; -D TFT_RGB_ORDER=TFT_RGB   ; Colour order Red-Green-Blue
    -D TFT_RGB_ORDER=TFT_BGR ; Colour order Blue-Green-Red
    -D SPI_FREQUENCY=80000000
    -D SPI_READ_FREQUENCY=6000000
    -D USER_SETUP_LOADED=1
    -D SUPPORT_TRANSACTIONS

HASP build_flags~

Specify the LCD Configuration to use and define the GPIOs in the environment build flags:

build_flags =
    ${env.build_flags}
    ${esp32.build_flags}
    ${esp32.ps_ram}

;region -- TFT_eSPI build options ------------------------
    ${lcd.st7789v}
    -D LANBONL8
    -D TFT_RST=18        ; FCP pin2 RESET
    -D TFT_SCLK=19       ; FCP pin3 SCL
    -D TFT_DC=21         ; FCP pin4 D/C
    -D TFT_CS=22         ; FCP pin5 CS
    -D TFT_MOSI=23       ; FCP pin6 SDA
    -D TFT_MISO=25       ; FCP pin7 SDO
    -D TFT_BCKL=5
    -D TOUCH_DRIVER=5206
    -D TOUCH_SDA=4
    -D TOUCH_SCL=0
    -D TOUCH_IRQ=-1   ; not connected
    -D TOUCH_RST=-1   ; not used, connected to 3.3V on FCP pin10
    -D TOUCH_FREQUENCY=400000
    -D LED_RED=26
    -D LED_GREEN=32
    -D LED_BLUE=33
    -D RELAY_1=12
    -D RELAY_2=24
    -D RELAY_3=37
;endregion
